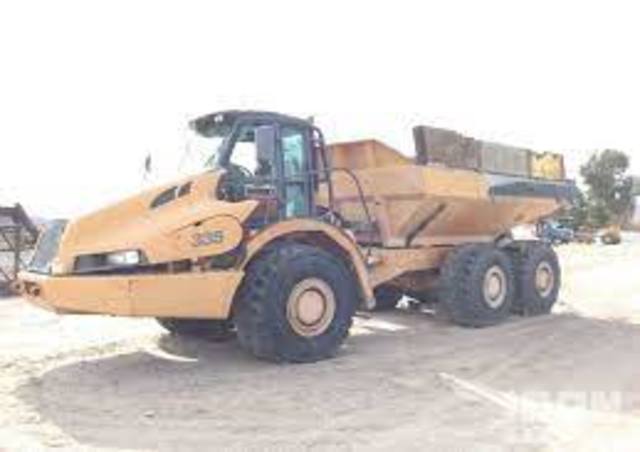

335 Case 335 Specifications & Technical Data (2005—2025)
.jpeg)
Technical specs - 335 Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 28.5 t
- Standard tyres
- 26.5xR25 XADN
- Dump capacity
- 20 m³
- Travel speed
- 48 km/h
- Net load
- 31.5 t
- Transport length
- 10.78 m
- Transport width
- 3.19 m
- Transport height
- 3.8 m
- Turning radius outside
- 8.59 m
- Loading height
- 3.07 m
- Engine manuf.
- Case
- Engine type
- 13F3B
- Engine power
- 284 kW
- Displacement
- 12.9 l
- Revolutions at max torque
- 1000 rpm
- Max. torque
- 1850 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 135x150 mm
- Emission level
- Tier II
More technical details, like: model series, dimension lxwxh are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
