335 Case 335 Specifications & Technical Data (2005—2006)

Manufactured by case, this is the 335 articulated dump truck. Find and download detailed specs and data sheets for this machine he…

Manufactured by case, this is the 335 articulated dump truck. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful case engine, this 335 28.5t machine can provide 306kW or 410 horse power for the articulated dump truck. The case 335 can be grouped in the biggest machine segment in the articulated dump trucks category.

The case 335 has been equipped and sold with Aircondition and Central lubrication. It does not include Bin heating, Tailgate and Diesel particulate filter. There are more detailed specifications and machine descriptions available in the original case 335 specs data sheet.

This model can be acquired for a list price between €295000 and €375000. Production of the 335 stopped in 2006. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other articulated dump trucks, which range from up to are produced by case. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest case 335 specs data sheet on LECTURA Specs today!

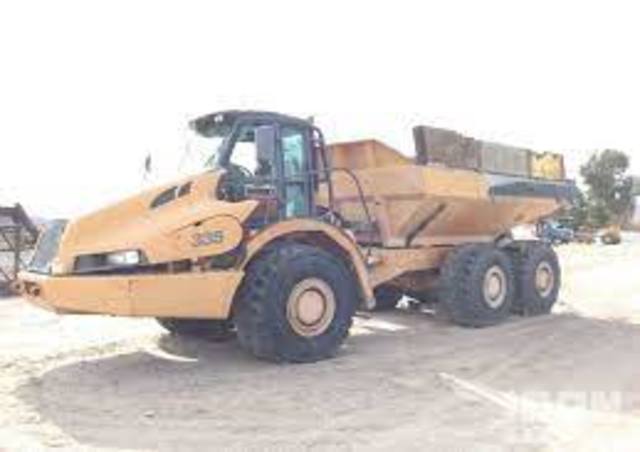

Articulated Dump Trucks Case 335

Technical specs - 335 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28.5 t
Standard tyres
26.5 R 25
Dump capacity
20 m³
Travel speed
45 km/h
Net load
31.5 t
Engine manuf.
Case
Engine type
13F3B
Engine power
306 kW

More technical details, like: transport length, transport width, transport height, turning radius outside, loading height, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke...

More technical details, like: transport length, transport width, transport height, turning radius outside, loading height, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, number of cylinders, rated speed, engine output - net, drive configuration, transmission type, transmission manufacturer, tyre - size, length - overall, height - max, ground clearance, width - over tyres, width - operating, length - body, loading height, full dump height, hoist - angle, articulation angle, fuel tank, heaped capacity, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter
No
Central lubrication
Yes
Heated dump body
No
Tailgate
No
Aircondition
Yes

Case 335 FAQ

When was the Case 335 articulated dump truck manufactured?

The Case 335 articulated dump truck was manufactured from 2005 to 2006.

How much does the Case 335 articulated dump truck weigh?

The Case 335 articulated dump truck weighs 28.5 tons.

What is the travel speed of the Case 335 articulated dump truck?

The Case 335 articulated dump truck has a travel speed of 45 km/h.

What are the undercarriage specifications of the Case 335 articulated dump truck?

The Case 335 articulated dump truck is equipped with standard tyres sized 26.5 R 25.

What is the material handling capacity of the Case 335 articulated dump truck?

The Case 335 articulated dump truck has a net load capacity of 31.5 tons and a dump capacity of 20 cubic meters.

How much is a Case 335 Articulated dump truck (2005u20132006) worth?

The residual value of the Case 335 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
