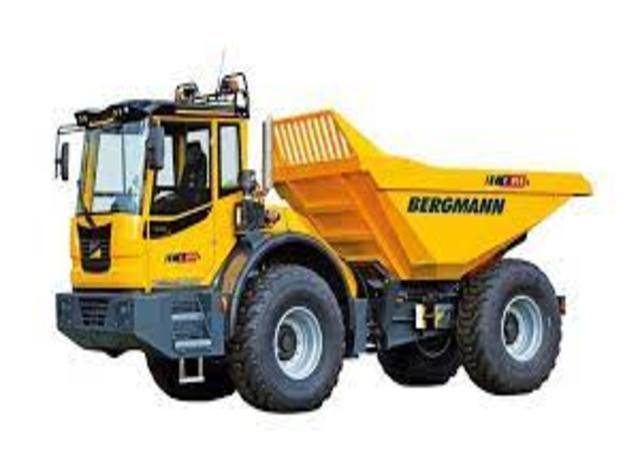

    Bergmann C815s/B Specifications & Technical Data (2020-2021)

    Rate this machine now!

    Weight: 9.08t – Standard tyres: 20.5 R25 – Dump capacity: 8m³ – Travel speed : 40km/h – Net load: 12t – Transport length: 7.598m

    Technical specs - C815s/B Bergmann

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 9.08 t
    Standard tyres 20.5 R25
    Dump capacity 8 m³
    Travel speed 40 km/h
    Net load 12 t
    Transport length 7.598 m
    Transport width 2.541 m
    Transport height 3.022 m
    Turning radius outside 7 m
    Loading height 2.049 m
    Engine manuf. Cummins
    Engine type QSB4.5
    Engine power 119 kW
    Displacement 4.5 l
    Revolutions at max torque 2200 rpm
    Emission level Tier 4 f
    Engine power ###
    Dimension lxwxh ###
    Max. torque ###
    No. of cylinders ###
    Cylinder bore x stroke ###
    Weight ###

    C815s/B Bergmann - Special equipment

    • Diesel particulate filter
    • Central lubrication
    • Heated dump body
    • Tailgate
    • Aircondition
