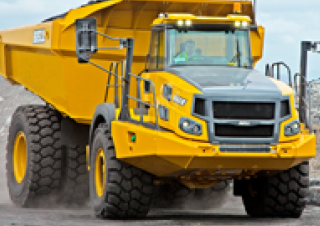

B60E 4x4 Bell B60E 4x4 Specifications & Technical Data (2019—2021)
Technical specs - B60E 4x4 Bell
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 42.48 t
- Standard tyres
- F:875/65 R29 / R:Twin 24.00 R35
- Dump capacity
- 42 m³
- Travel speed
- 47 km/h
- Net load
- 55 t
- Transport length
- 11.11 m
- Transport width
- 4.49 m
- Transport height
- 4.67 m
- Turning radius outside
- 9.22 m
- Loading height
- 3.82 m
- Model series
- E
- Engine manuf.
- Mercedes-Benz
- Engine type
- OM473 LA
- Engine power
- 405 kW
- Displacement
- 15.6 l
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 2750 Nm
- No. of cylinders
- 6
- Emission level
- Stage IIIA / EPA Tier 3
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
No
- Tailgate
-
No
- Aircondition
-
Yes
