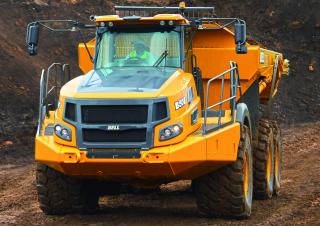

B50E Bell B50E Specifications & Technical Data (2016—2021)
Technical specs - B50E Bell
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 35.3 t
- Standard tyres
- 875/65 R 29
- Dump capacity
- 29 m³
- Travel speed
- 51 km/h
- Net load
- 45.4 t
- Transport length
- 11.177 m
- Transport width
- 4.057 m
- Transport height
- 3.822 m
- Turning radius outside
- 9.349 m
- Loading height
- 3.39 m
- Model series
- E
- Engine manuf.
- Mercedes-Benz
- Engine type
- OM473 LA
- Engine power
- 430 kW
- Displacement
- 15.6 l
- Revolutions at max torque
- 1700 rpm
- Max. torque
- 2750 Nm
- No. of cylinders
- 6
- Emission level
- 4f
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
No
- Central lubrication
-
No
- Heated dump body
-
Yes
- Tailgate
-
No
- Aircondition
-
Yes
Download datasheets (PDF)
