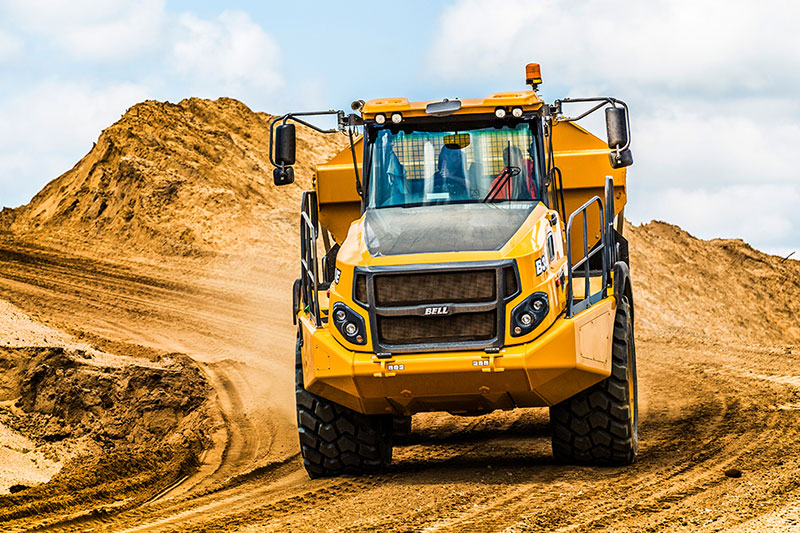

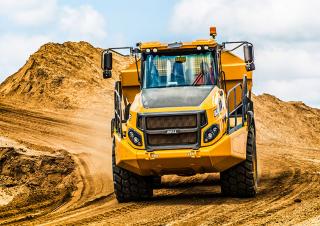

B35E Bell B35E Specifications & Technical Data (2016—2021)

The B 35 E articulated dump truck model is manufactured by BELL. Find and download detailed specs and data sheets for this machine…

The B 35 E articulated dump truck model is manufactured by BELL. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Mercedes-Benz engine, this B 35 E 30.38t machine can provide 320kW or 429 horse power for the articulated dump truck. The BELL B 35 E can be grouped in the biggest machine segment in the articulated dump trucks category. The model's dimensions are 11.268m x 3.402m x 3.752m.

The B 35 E is manufactured and distributed with Aircondition and Central lubrication. It has been sold without air Tailgate, Bin heating and Diesel particulate filter as of 2017. There are more detailed specifications and machine descriptions available in the original BELL B 35 E specs data sheet.

This model can be acquired for a list price between €384000 and €489000. Production of the B 35 E continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 6 other articulated dump trucks, which range from 19.7t up to 42.5t are produced by BELL. Of these, B 25 E, B 30 E and also B 60 E are the most frequently visited on LECTURA Specs. Ranked in the LECTURA index at #26, this B 35 E articulated dump truck has models that date from 2016 to 2017. Want more detailed specifications? Download the latest BELL B 35 E specs data sheet on LECTURA Specs today!

B35E

Years of manufacture: 2016—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - B35E Bell

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 30.38 t

Standard tyres: 26.5 R 25

Dump capacity: 21 m³

Travel speed: 51 km/h

Net load: 33.5 t

Transport length: 11.268 m

Transport width: 3.402 m

Transport height: 3.752 m

Turning radius outside: 9.211 m

Loading height: 3.084 m

Model series: E

Engine manuf.: Mercedes-Benz

Engine type: OM470 LA

Engine power: 320 kW

Displacement: 10.7 l

Revolutions at max torque: 1700 rpm

Max. torque: 2100 Nm

No. of cylinders: 6

Emission level: 4f

More technical details, like: dimension lxwxh, cylinder bore x stroke, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, final drive, traction control, front differential, second axle differential, third axle differential, centre transfer differential, tyre - size, tyre - type, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - transport, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, approach angle, articulation angle, turning radius - outside, turning radius - inside, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - centre, unladen axle load - rear, unladen axle load - centre + rear, laden axle load - front, laden axle load - centre, laden axle load - rear, laden axle load - centre + rear, front - laden, rear - laden, speed - forward maximum, speed - reverse maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: Yes
Heated dump body: No
Tailgate: No
Aircondition: Yes

Download datasheets (PDF)

B35E Bell Specification for Europe (EN)

Bell B35E FAQ

When was the Bell B35E manufactured?

The Bell B35E was manufactured from 2016 to 2021.

How much does the Bell B35E weigh?

The Bell B35E weighs 30.38 tons.

What are the transport dimensions of the Bell B35E articulated dump truck?

The Bell B35E has a transport length of 11.27 meters, a transport width of 3.4 meters, and a transport height of 3.75 meters.

What is the travel speed of the Bell B35E articulated dump truck?

The Bell B35E articulated dump truck has a travel speed of 51 km/h.

What are the undercarriage specifications of the Bell B35E articulated dump truck?

The Bell B35E articulated dump truck is equipped with standard tyres sized 26.5 R 25.

What is the turning radius of the Bell B35E articulated dump truck?

The Bell B35E articulated dump truck has an outside turning radius of 9.211 meters.

What is the material handling capacity of the Bell B35E articulated dump truck?

The Bell B35E has a net load capacity of 33.5 tons, a dump capacity of 21 cubic meters, and a loading height of 3.08 meters.
