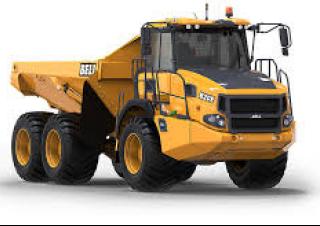

B20E Bell B20E Specifications & Technical Data (2021—2026)
.jpg)
Technical specs - B20E Bell
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 17.99 t
- Standard tyres
- 20.5 R 25
- Dump capacity
- 13.5 m³
- Travel speed
- 42 km/h
- Net load
- 18 t
- Transport length
- 9.271 m
- Transport width
- 2.838 m
- Transport height
- 3.385 m
- Turning radius outside
- 7.585 m
- Loading height
- 2.537 m
- Model series
- E
- Engine manuf.
- Mercedes-Benz
- Engine type
- OM934 LA
- Engine power
- 170 kW
- Displacement
- 5.1 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 900 Nm
- No. of cylinders
- 4
- Emission level
- EU V
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Diesel particulate filter
-
Yes
- Central lubrication
-
Yes
- Heated dump body
-
Yes
- Tailgate
-
Yes
- Aircondition
-
Yes
Download datasheets (PDF)
