B 25 DN Bell B 25 DN Specifications & Technical Data (2011—2013)

The B 25 DN articulated dump truck model is manufactured by BELL. Find and download detailed specs and data sheets for this machin…

The B 25 DN articulated dump truck model is manufactured by BELL. Find and download detailed specs and data sheets for this machine here.

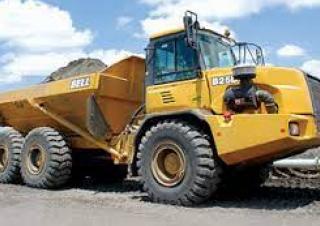

The BELL B 25 DN is a 18.4t machine with Mercedes-Benz engine which powers this model with up to 203kW or 272 horse power. The B 25 DN is categorised in the smallest machine segment in the articulated dump trucks category. The model's dimensions are 9.452m x 2.6m x 3.425m.

Since 2011, this model has included Aircondition. Bin heating, Central lubrication and Tailgate are not provided on this model as of 2013. There are more detailed specifications and machine descriptions available in the original BELL B 25 DN specs data sheet. You can download it for free in German on LECTURA Specs.

The production stopped in 2013, where this B 25 DN was available at a new list price between €306000 and €389000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

BELL currently produces 7 other articulated dump trucks, which range from 19.7t up to 42.5t - the most visited on LECTURA Specs are B 30 E, B 60 E, B 25 E. Want more detailed specifications? Download the latest BELL B 25 DN specs data sheet on LECTURA Specs today!

B 25 DN

Years of manufacture: 2011—2013

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - B 25 DN Bell

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 18.4 t

Standard tyres: 23.5 R 25

Dump capacity: 11 m³

Travel speed: 53 km/h

Net load: 23.2 t

Transport length: 9.452 m

Transport width: 2.6 m

Transport height: 3.425 m

Loading height: 2.778 m

Model series: DN

Engine manuf.: Mercedes-Benz

Engine type: OM926 LA

Engine power: 203 kW

Displacement: 7.2 l

Revolutions at max torque: 1600 rpm

More technical details, like: turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, emission rating, number of cylinders, rated speed, engine output - net, engine output - gross, torque, drive configuration, transmission type, transmission manufacturer, transmission model, final drive, tyre - size, tyre - type, front suspension - type, front suspension, rear suspension - type, rear suspension, service brake - type, length - overall, height - over cab, height - max, ground clearance, width - over tyres, width - operating, wheelbase, length - body, loading height, full dump height, hoist - type, hoist - angle, articulation angle, fuel tank, heaped capacity, cycle time - raise, unladen axle load - front, unladen axle load - centre, unladen axle load - rear, unladen axle load - centre + rear, laden axle load - front, laden axle load - centre, laden axle load - rear, laden axle load - centre + rear, speed - forward maximum, net weight, payload, gross weight are available in the full technical specs.

Special equipment

Diesel particulate filter: No
Central lubrication: No
Heated dump body: No
Tailgate: No
Aircondition: Yes

Download datasheets (PDF)

B 25 DN Bell Specification for Europe (DE)

Bell B 25 DN FAQ

When was the Bell B 25 DN manufactured?

The Bell B 25 DN was manufactured from 2011 to 2013.

How much does the Bell B 25 DN articulated dump truck weigh?

The Bell B 25 DN articulated dump truck weighs 18.4 tons.

What are the transport dimensions of the Bell B 25 DN articulated dump truck?

The Bell B 25 DN has a transport length of 9.45 meters, a transport width of 2.6 meters, and a transport height of 3.43 meters.

What is the travel speed of the Bell B 25 DN articulated dump truck?

The Bell B 25 DN has a travel speed of 53 km/h.

What are the undercarriage specifications of the Bell B 25 DN articulated dump truck?

The Bell B 25 DN articulated dump truck is equipped with standard tyres sized 23.5 R 25.

What is the material handling capacity of the Bell B 25 DN articulated dump truck?

The Bell B 25 DN articulated dump truck has a net load capacity of 23.2 tons and a dump capacity of 11 cubic meters.

How much is a Bell B 25 DN Articulated dump truck (2011u20132013) worth?

The residual value of the Bell B 25 DN depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
