4TN107-FHT Yanmar 4TN107-FHT Specifications & Technical Data (2017—2026)

The Yanmar 4TN107-FHT is a machine component manufactured since 2017. It has a displacement of 4.6 liters and weighs 540 kilograms…

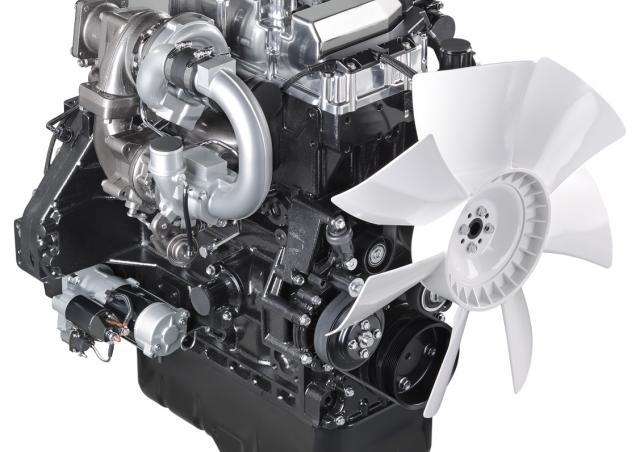

The Yanmar 4TN107-FHT is a machine component manufactured since 2017. It has a displacement of 4.6 liters and weighs 540 kilograms. This engine has 4 cylinders with a bore of 107 millimeters and a stroke of 127 millimeters. It can generate a maximum power of 110 kilowatts at a speed of 2200 RPM.

Engines Yanmar 4TN107-FHT

Technical specs - 4TN107-FHT Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
4
Displacement
4.6 l
Layout
Inline
max. Power
110 kW
RPM
2200
Tier Max.
Tier 4f / V
Aspiration
T
Weight
540 kg
Type of cooling
w
Bore
107 mm
Stroke
127 mm
Model series
4TN

More technical details, like: min. power, max. torque, tier min., alternative name are available in the full technical specs.

Download datasheets (PDF)

Yanmar 4TN107-FHT overview

Emission

4tn107

New 4.6 liter, EU Stage V compliant, charged air cooler, two stage turbocharged, common rail engine peaks at 155kW while developing a staggering 805Nm of torque.
