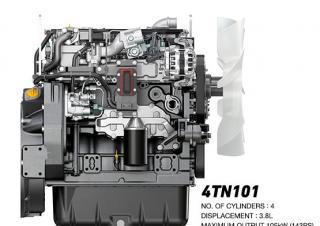

4TN101FDT Yanmar 4TN101FDT Specifications & Technical Data (2021—2026)

The Yanmar 4TN101FDT is a machine component manufactured since 2021. It has a displacement of 3.847 liters and weighs 464 kilogram…

The Yanmar 4TN101FDT is a machine component manufactured since 2021. It has a displacement of 3.847 liters and weighs 464 kilograms. With 4 cylinders, it has a bore of 101 mm and a stroke of 120.03 mm. It can generate a maximum torque of 550 Nm and a maximum power of 105 kW at 2200 RPM.

Engines Yanmar 4TN101FDT

Technical specs - 4TN101FDT Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
4
Displacement
3.847 l
Layout
Inline
max. Power
105 kW
RPM
2200
Max. torque
550 Nm
Tier Max.
Tier 4 / V
Aspiration
T
Weight
464 kg
Type of cooling
w
Bore
101 mm
Stroke
120.03 mm
Model series
4TN

More technical details, like: min. power, tier min., alternative name are available in the full technical specs.
