2206D-E13TA Perkins 2206D-E13TA Specifications & Technical Data (2016—2026)

The Perkins 2206D-E13TA engine, manufactured since 2016, is a 12.5 liter machine component weighing 908.4 kilograms. It features 6…

The Perkins 2206D-E13TA engine, manufactured since 2016, is a 12.5 liter machine component weighing 908.4 kilograms. It features 6 cylinders with a bore of 130 mm and a stroke of 157 mm. With a maximum torque of 2215 Nm, it operates at a maximum power of 388 kW and a minimum power of 287 kW at 1800 RPM.

Engines Perkins 2206D-E13TA

Technical specs - 2206D-E13TA Perkins

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
12.5 l
Layout
Inline
min. Power
287 kW
max. Power
388 kW
RPM
1800
Max. torque
2215 Nm
Tier Max.
UN IIIA
Aspiration
T
Weight
908.4 kg
Type of cooling
w
Bore
130 mm
Stroke
157 mm
Model series
2200

More technical details, like: tier min., alternative name are available in the full technical specs.

Download datasheets (PDF)

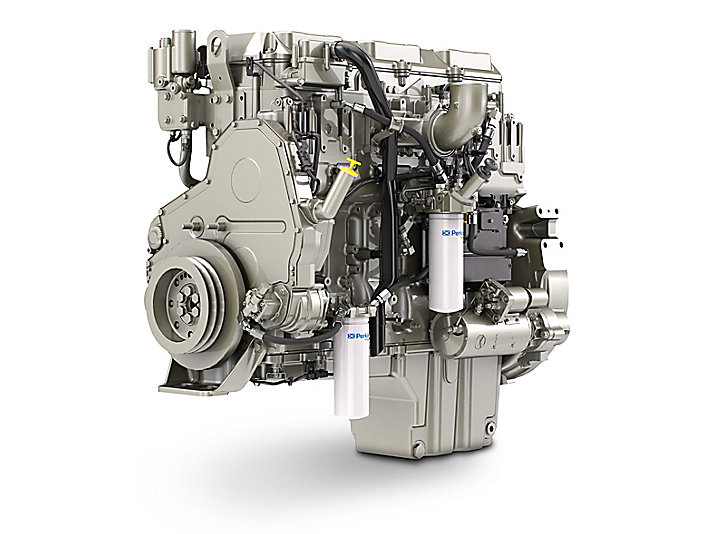

Perkins 2206D-E13TA overview

Cool

Technical information

Turbocharged aftercooled Full electronic control system All connectors and wiring looms waterproof and designed to withstand harsh off-highway environments Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines Vertical outlet thermostat housing, centrifugal water pump Detailed guidance on cooling system design and validation available to ensure machine reliability Wide choice of drivetrain interfaces, SAE1 configurations Mechanical Unit Injector fuel system, controlled electronically Choice of sumps for different applications Open crankcase ventilation system with fumes disposal (optional OCV filter system) Oil cooler, oil filler, oil filter, oil dipstick, oil pump (gear-driven) SAE1 power take-off available with optional SAE A, SAE B and SAE C power take-off drives Engine power can also be taken from the front of the engine on some applications
