1206E-E70TTA Perkins 1206E-E70TTA Specifications & Technical Data (2014—2020)

The Perkins 1206E-E70TTA is a machine component manufactured by Perkins from 2014 to 2020. It has a displacement of 7 liters and w…

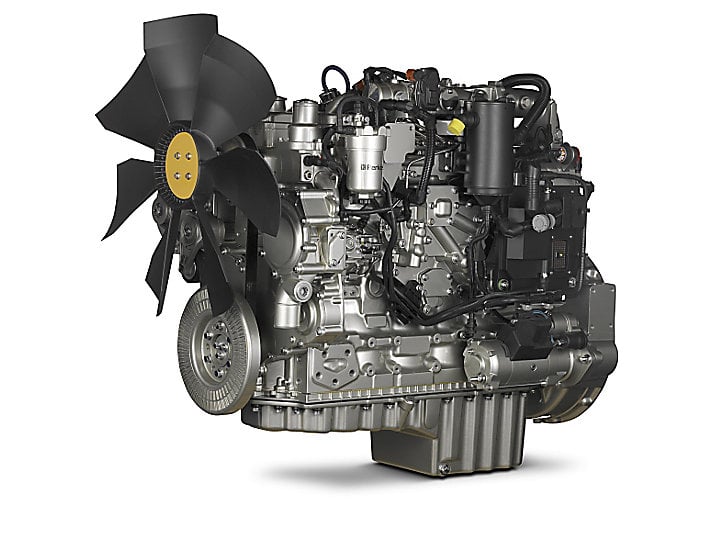

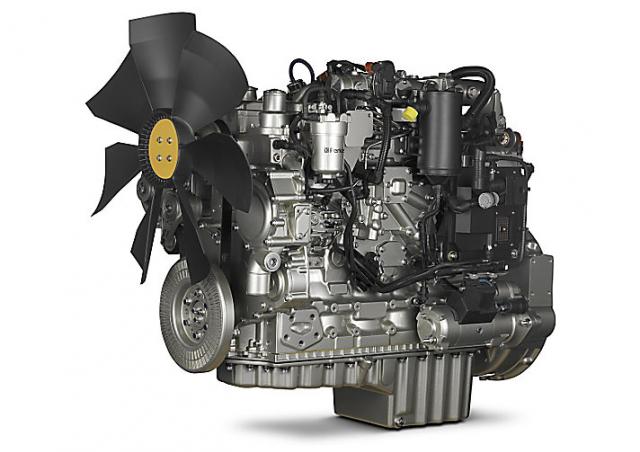

The Perkins 1206E-E70TTA is a machine component manufactured by Perkins from 2014 to 2020. It has a displacement of 7 liters and weighs 715 kilograms. With 6 cylinders, it has a bore of 105 mm and a stroke of 135 mm. The engine has a maximum torque of 1257 Nm and operates at a speed of 1400 RPM. It has a minimum power output of 140 kW and a maximum power output of 225 kW.

Engines Perkins 1206E-E70TTA

Technical specs - 1206E-E70TTA Perkins

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
7 l
Layout
Inline
min. Power
140 kW
max. Power
225 kW
RPM
1400
Max. torque
1257 Nm
Tier Min.
IIIB
Tier Max.
Tier 4i
Aspiration
T
Weight
715 kg
Type of cooling
w
Bore
105 mm
Stroke
135 mm
Model series
1200

Download datasheets (PDF)

Perkins 1206E-E70TTA overview

Perkins 1206E-E70TTA features overview

Technology

The DPF technology chosen is a wall flow filter configuration that performs through the whole work cycle of the engine, thus allowing it to work efficiently.


Emission

Fuel and fuel system

Industrial technology requires Ultra Low Sulphur Diesel Fuel (ULSD, 15 ppm sulphur), in addition to ultra low sulphur diesel oils, for use in Tier 4 Interim/Stage IIIB engines. These cleaner fuels and oils will help reduce ash and maintain service intervals. In addition, B20 biodiesel capability adds even greater sustainability where desired or required. Electronic high pressure common rail Innovative filter design – ensures maximum protection of the engine.


Cool

Control system

Full electronic control system All connectors and wiring looms waterproof and designed to withstand harsh off-highway environments Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines


Cooling system

Top tank temperature 108°C as standard to minimise cooling pack size 50:50 water glycol mix Detailed guidance on cooling system design and validation available to ensure machine reliability
