1103D-33TA Perkins 1103D-33TA Specifications & Technical Data (2014—2026)

The Perkins 1103D-33TA is a machine component manufactured since 2014. It has a displacement of 3.3 liters and weighs 276 kilogram…

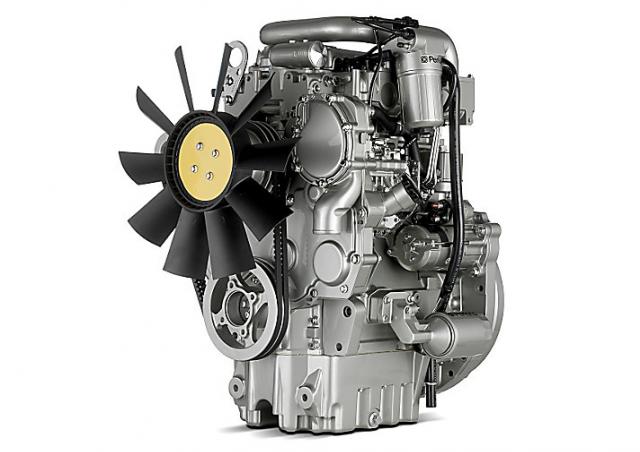

The Perkins 1103D-33TA is a machine component manufactured since 2014. It has a displacement of 3.3 liters and weighs 276 kilograms. With a maximum torque of 310 Nm, it is equipped with three cylinders, each with a bore of 105 mm and a stroke of 127 mm. The engine has a minimum power output of 47 kW and a maximum power output of 58 kW, operating at a speed of 2200 RPM.

Engines Perkins 1103D-33TA

Technical specs - 1103D-33TA Perkins

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
3
Displacement
3.3 l
Layout
Inline
min. Power
47 kW
max. Power
58 kW
RPM
2200
Max. torque
310 Nm
Tier Max.
IIIA
Aspiration
T
Weight
276 kg
Type of cooling
w
Bore
105 mm
Stroke
127 mm
Model series
1100

More technical details, like: tier min., alternative name are available in the full technical specs.
