V4309 Kubota V4309 Specifications & Technical Data (2022—2026)

The Kubota V4309 engine, manufactured since 2022, is a machine component with a displacement of 4.257 liters and a weight of 600 k…

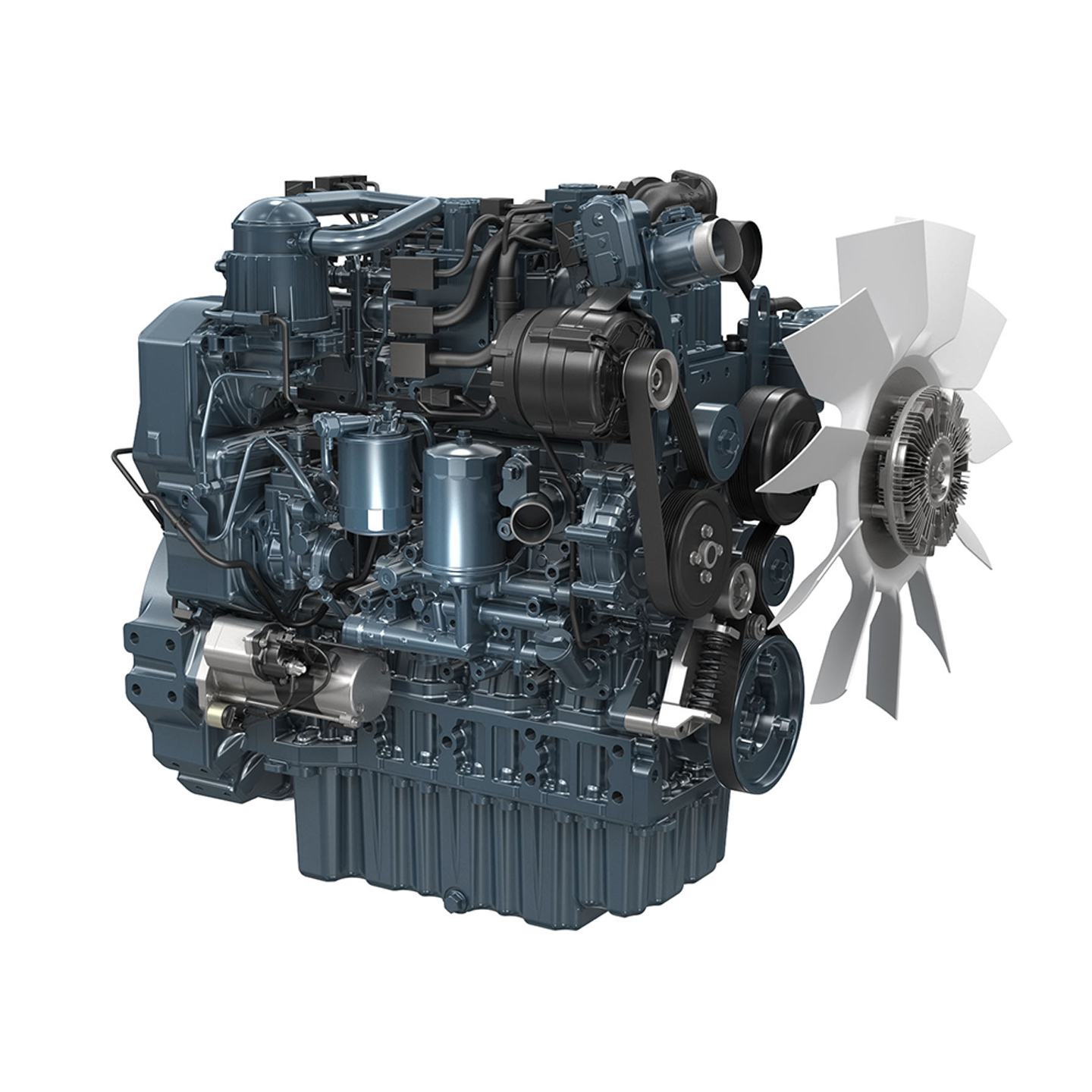

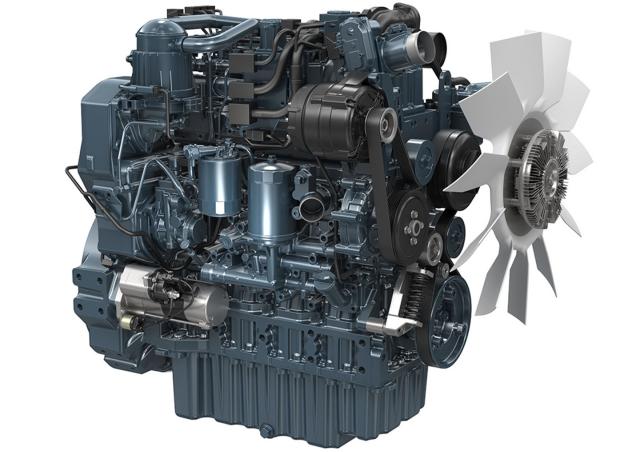

The Kubota V4309 engine, manufactured since 2022, is a machine component with a displacement of 4.257 liters and a weight of 600 kilograms. It features a maximum torque of 649.6 Nm and is equipped with four cylinders. The engine has a bore of 110 mm and a stroke of 112 mm. With a maximum power output of 115.7 kW, it operates at a speed of 2200 RPM.

Engines Kubota V4309

Technical specs - V4309 Kubota

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
4
Displacement
4.257 l
Layout
Inline
max. Power
115.7 kW
RPM
2200
Max. torque
649.6 Nm
Tier Max.
Tier 4 + EU Stage V
Aspiration
T
Weight
600 kg
Type of cooling
w
Bore
110 mm
Stroke
112 mm
Model series
V

More technical details, like: min. power, tier min., alternative name are available in the full technical specs.

Download datasheets (PDF)

Kubota V4309 overview

Power

Great Versatility

100% power take-off at the flywheel and front endSide PTO takes up to 3 hydraulic pumpsChoice of flywheel housings and flywheels for OEM coupling.
