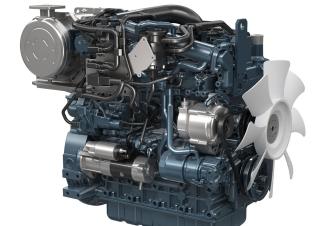

V3307-CR-T-E4B Kubota V3307-CR-T-E4B Specifications & Technical Data (2017—2026)
The Kubota V3307-CR-T-E4B engine is a machine component manufactured since 2017. It has a displacement of 3.331 liters and weighs …
The Kubota V3307-CR-T-E4B engine is a machine component manufactured since 2017. It has a displacement of 3.331 liters and weighs 305 kilograms. With four cylinders, it has a bore of 94 mm and a stroke of 120 mm. The engine can generate a maximum torque of 265 Nm and a maximum power of 55.4 kW at 2600 RPM.
The NEW Kubota 07 Series engines have been designed to comply with EPA Interim Tier 4 (Option1) emissions regulations, which are the most stringent in this size range. The Kubota 07 Series engines also comply with EU Stage III A requirements. The Kubota 07 Series engines offer the benefit of one year longer validity than Tier 3. Therefore, these engines are good through the end of 2012 in both the North American and European markets, which would save engineering resources for the future Tier levels. Meeting emission regulations with minimal additional required devices: NOx is reduced only by mechanical means such as a compactly designed cooled exhaust gas recirculation (EGR) system.
Cool
New Concept
The Kubota 07 Series is a totally new concept in engine design developed with various requirements necessary for a wide range of industrial applications. Kubota's unique cylinder block design was developed using Kubota's original casting technology allowing for a larger displacement within the current 2.4 L compact engine package. The improved cooling system with a main water gallery and water passages between cylinder bores as a countermeasure against heat load provides high power density, superior endurance and a reliable Kubota 07 Series. The Kubota 07 Series completes Kubota's seamless range up to 100 hp.
Injection
Clean and Quiet Power
Kubota's original E-CDIS (Center Direct Injection System) combustion system, renowned for clean combustion in the Kubota V3 (DI) Series, has been renovated. The fuel injection pressure was increased and the combustion chamber was redesigned to achieve a 25% lower particulate matter (PM) level, resulting in a better condition when compared to engines that only meet EPA Tier 3 regulations in this class. These new engines have been designed to reduce transmitted vibrations and radiated sound, resulting in lower noise levels. Operator and environmentally friendly, the Kubota 07 Series begins a new era of Kubota's engine design.
