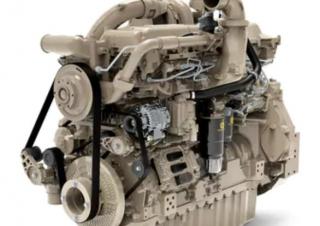

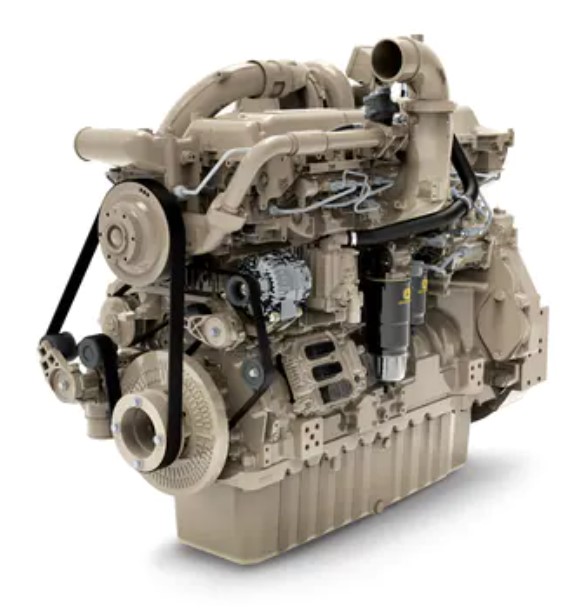

6136CG550 John Deere Construction 6136CG550 Specifications & Technical Data (2021—2026)

The John Deere Construction 6136CG550 engine, manufactured since 2021, has a displacement of 13.6 liters and a weight of 1521 kilo…

The John Deere Construction 6136CG550 engine, manufactured since 2021, has a displacement of 13.6 liters and a weight of 1521 kilograms. It is equipped with 6 cylinders, each with a bore of 132 mm and a stroke of 165 mm. The engine has a maximum torque of 2495 Nm and operates at a minimum power of 460 kW and a maximum power of 506 kW at 1550 RPM.

Engines John Deere Construction 6136CG550

Technical specs - 6136CG550 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
13.6 l
Layout
Inline
min. Power
460 kW
max. Power
506 kW
RPM
1550
Max. torque
3050 Nm
Tier Max.
Tier 4 / V
Aspiration
T
Weight
1521 kg
Type of cooling
l
Bore
132 mm
Stroke
165 mm
Model series
X

More technical details, like: tier min., alternative name are available in the full technical specs.
