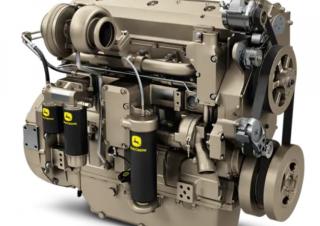

6135HF475 John Deere Construction 6135HF475 Specifications & Technical Data (2021—2026)

The John Deere Construction 6135HF475 engine, manufactured since 2021, has a displacement of 13.5 liters and a weight of 1334 kilo…

The John Deere Construction 6135HF475 engine, manufactured since 2021, has a displacement of 13.5 liters and a weight of 1334 kilograms. It is equipped with 6 cylinders, each with a bore of 132 mm and a stroke of 165 mm. The engine has a maximum torque of 2550 Nm and operates at a minimum power of 294 kW and a maximum power of 448 kW at 1575 RPM.

Engines John Deere Construction 6135HF475

Technical specs - 6135HF475 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
13.5 l
Layout
Inline
min. Power
294 kW
max. Power
448 kW
RPM
1575
Max. torque
2550 Nm
Tier Max.
Stage II
Aspiration
T
Weight
1334 kg
Type of cooling
l
Bore
132 mm
Stroke
165 mm

More technical details, like: tier min., alternative name, model series are available in the full technical specs.
