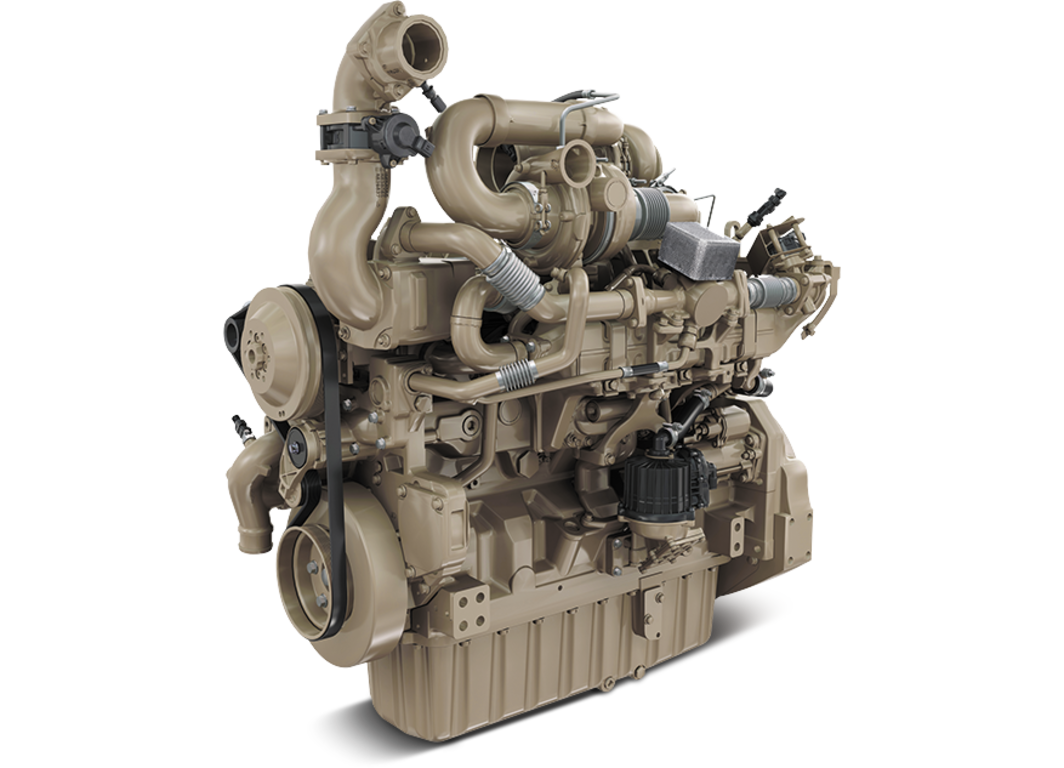

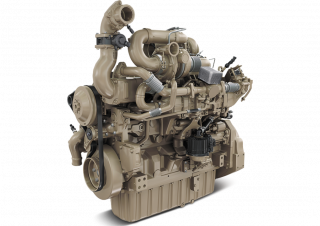

6090HFC95 John Deere Construction 6090HFC95 Specifications & Technical Data (2017—2026)

The John Deere Construction 6090HFC95 engine, manufactured since 2017, has a displacement of 9 liters and a weight of 1096.8 kilog…

The John Deere Construction 6090HFC95 engine, manufactured since 2017, has a displacement of 9 liters and a weight of 1096.8 kilograms. It is equipped with 6 cylinders, each with a bore of 118.4 mm and a stroke of 136 mm. The engine has a maximum torque of 1685 Nm and operates at a minimum power of 261 kW and a maximum power of 317 kW at 2200 RPM.

Engines John Deere Construction 6090HFC95

Technical specs - 6090HFC95 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
9 l
Layout
inline
min. Power
261 kW
max. Power
317 kW
RPM
2200
Max. torque
1685 Nm
Tier Max.
Tier 4 / IIIB
Aspiration
T
Weight
1096.8 kg
Bore
118.4 mm
Stroke
136 mm

More technical details, like: tier min., type of cooling, alternative name, model series are available in the full technical specs.
