6090HF475 John Deere Construction 6090HF475 Specifications & Technical Data (2021—2026)

The John Deere Construction 6090HF475 engine, manufactured since 2021, has a displacement of 9 liters and a weight of 1097 kilogra…

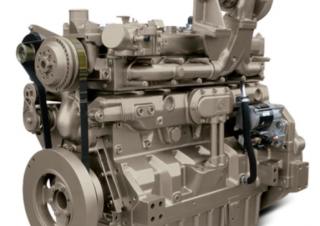

The John Deere Construction 6090HF475 engine, manufactured since 2021, has a displacement of 9 liters and a weight of 1097 kilograms. It is equipped with 6 cylinders, each with a bore of 118 mm and a stroke of 136 mm. The engine has a maximum torque of 1474 Nm and operates at a minimum power of 172 kW and a maximum power of 286 kW at 1600 RPM.

Engines John Deere Construction 6090HF475

Technical specs - 6090HF475 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
9 l
Layout
Inline
min. Power
172 kW
max. Power
286 kW
RPM
1600
Max. torque
1474 Nm
Tier Max.
Stage II
Aspiration
T
Weight
1097 kg
Type of cooling
l
Bore
118 mm
Stroke
136 mm

More technical details, like: tier min., alternative name, model series are available in the full technical specs.
