6068HFC09 John Deere Construction 6068HFC09 Specifications & Technical Data (2017—2026)

The John Deere Construction 6068HFC09 is a machine component manufactured since 2017. It has a displacement of 6.8 liters and weig…

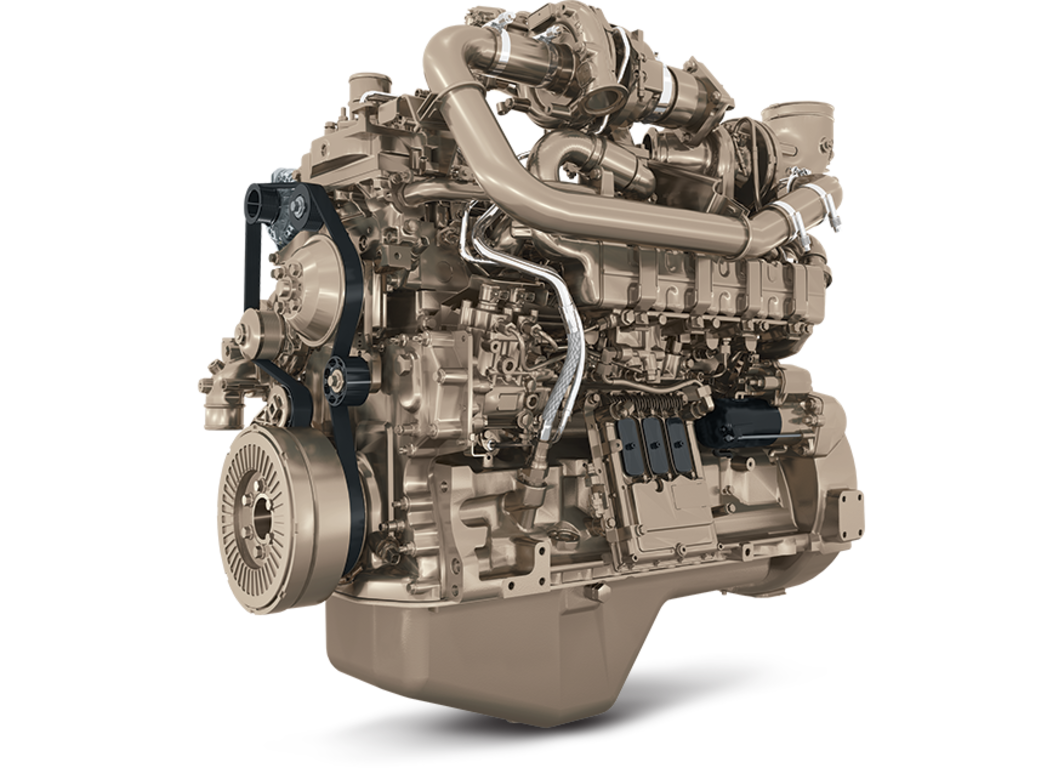

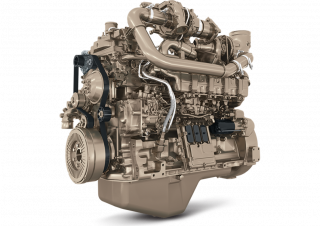

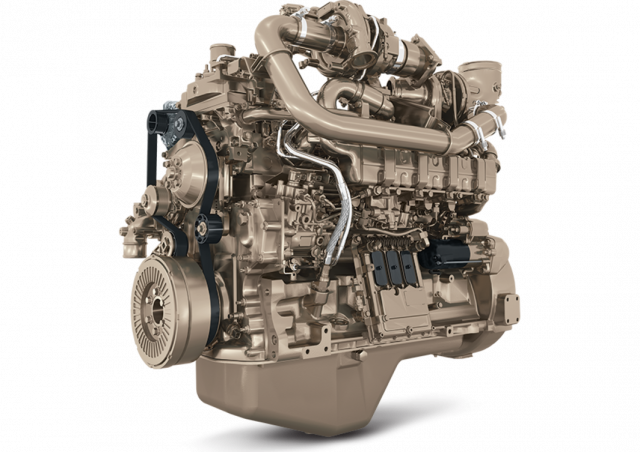

The John Deere Construction 6068HFC09 is a machine component manufactured since 2017. It has a displacement of 6.8 liters and weighs 785 kilograms. With 6 cylinders, it has a bore of 106 mm and a stroke of 127 mm. It can generate a maximum torque of 1141 Nm and a maximum power of 224 kW at 2400 RPM.

Engines John Deere Construction 6068HFC09

Technical specs - 6068HFC09 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
6.8 l
Layout
inline
max. Power
224 kW
RPM
2400
Max. torque
1141 Nm
Tier Max.
Tier 4
Aspiration
T
Weight
785 kg
Bore
106 mm
Stroke
127 mm

More technical details, like: min. power, tier min., type of cooling, alternative name, model series are available in the full technical specs.
