6068HFC08 John Deere Construction 6068HFC08 Specifications & Technical Data (2017—2026)

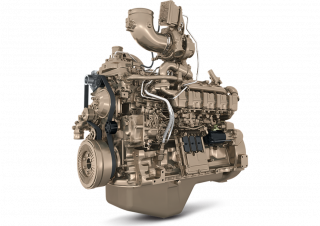

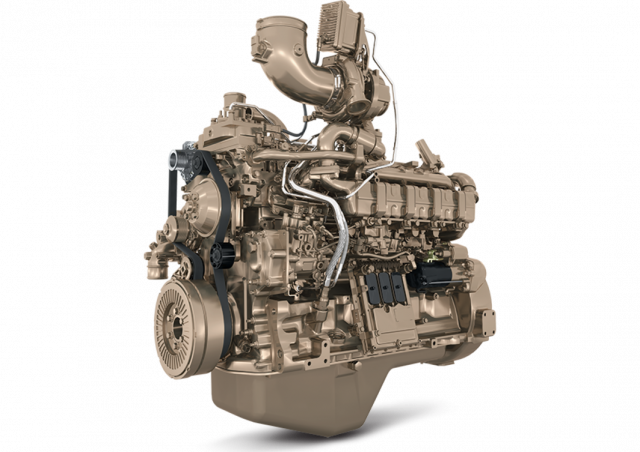

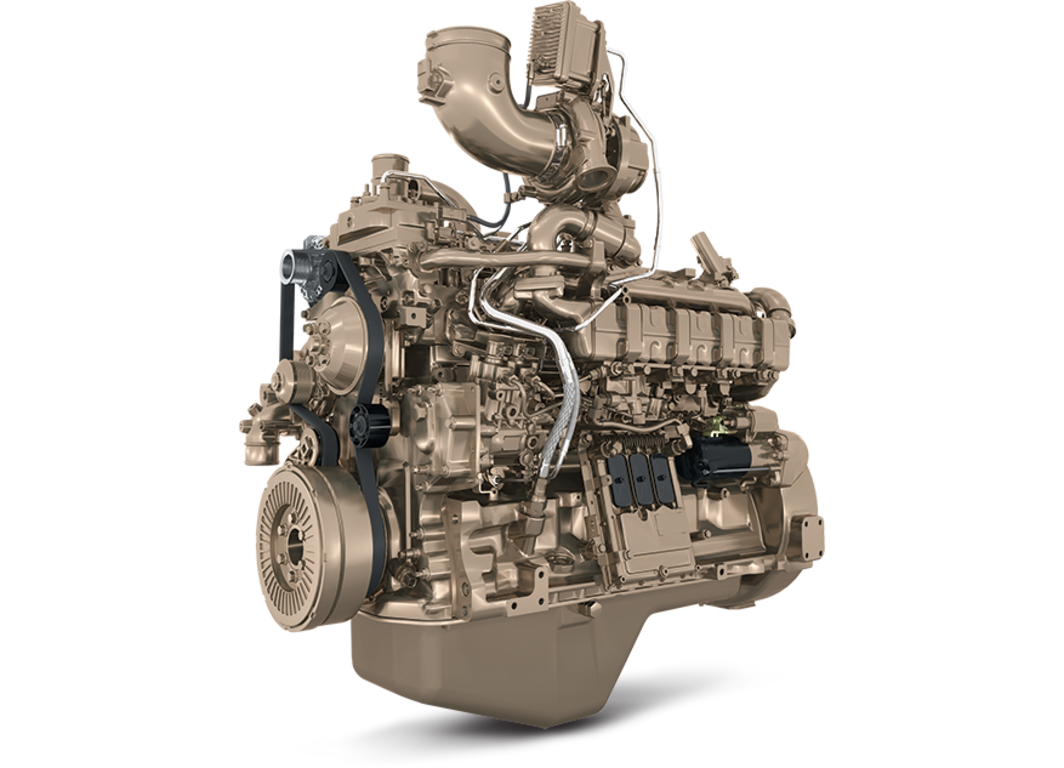

The John Deere Construction 6068HFC08 engine, manufactured since 2017, has a displacement of 6.8 liters and a weight of 770 kilogr…

The John Deere Construction 6068HFC08 engine, manufactured since 2017, has a displacement of 6.8 liters and a weight of 770 kilograms. It is equipped with 6 cylinders, each with a bore of 106 mm and a stroke of 127 mm. The engine has a maximum torque of 1000 Nm and operates at a minimum power of 185 kW and a maximum power of 190 kW at 2400 RPM.

Engines John Deere Construction 6068HFC08

Technical specs - 6068HFC08 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
6.8 l
Layout
inline
min. Power
185 kW
max. Power
190 kW
RPM
2400
Max. torque
1000 Nm
Tier Max.
Tier 4
Aspiration
T
Weight
770 kg
Bore
106 mm
Stroke
127 mm

More technical details, like: tier min., type of cooling, alternative name, model series are available in the full technical specs.
