6068HF485 John Deere Construction 6068HF485 Specifications & Technical Data (2017—2026)

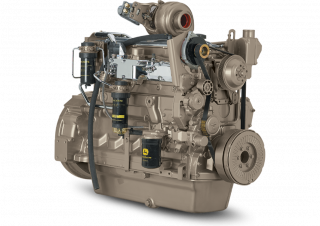

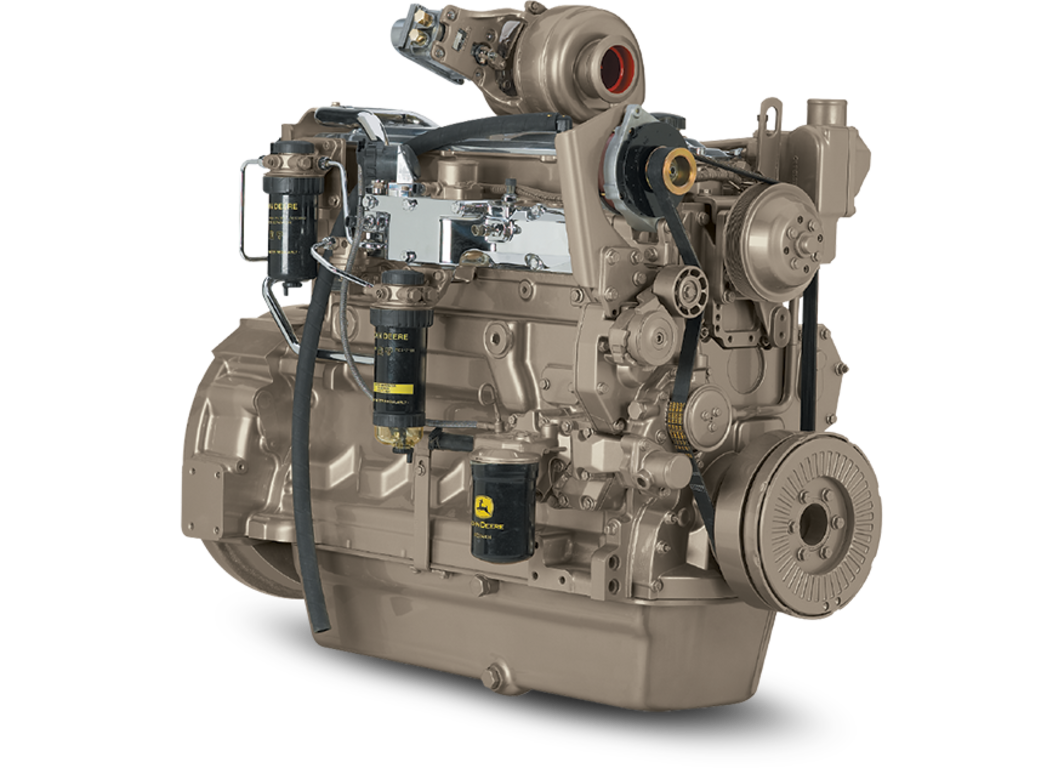

The John Deere Construction 6068HF485 engine, manufactured since 2017, has a displacement of 6.8 liters and weighs 678 kilograms. …

The John Deere Construction 6068HF485 engine, manufactured since 2017, has a displacement of 6.8 liters and weighs 678 kilograms. It is equipped with 6 cylinders, each with a bore of 106 mm and a stroke of 127 mm. The engine can generate a maximum torque of 1025 Nm and a maximum power of 205 kW at 2400 RPM.

Engines John Deere Construction 6068HF485

Technical specs - 6068HF485 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
6.8 l
Layout
inline
max. Power
205 kW
RPM
2400
Max. torque
1025 Nm
Tier Max.
Tier 3
Aspiration
T
Weight
678 kg
Bore
106 mm
Stroke
127 mm

More technical details, like: min. power, tier min., type of cooling, alternative name, model series are available in the full technical specs.
