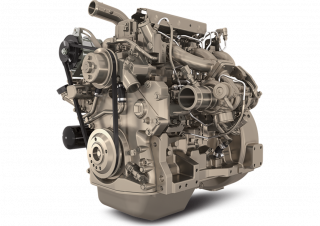

3029HFC03 John Deere Construction 3029HFC03 Specifications & Technical Data (2017—2026)

The John Deere Construction 3029HFC03 engine, manufactured since 2017, is a machine component with a displacement of 2.9 liters an…

The John Deere Construction 3029HFC03 engine, manufactured since 2017, is a machine component with a displacement of 2.9 liters and a weight of 400 kilograms. It features a maximum torque of 304 Nm and is equipped with three cylinders. The bore measures 106.5 mm, while the stroke is 110 mm. With a minimum power output of 36 kW and a maximum power output of 55 kW, this engine operates at a speed of 2400 RPM.

Engines John Deere Construction 3029HFC03

Technical specs - 3029HFC03 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
3
Displacement
2.9 l
Layout
inline
min. Power
36 kW
max. Power
55 kW
RPM
2400
Max. torque
304 Nm
Tier Min.
Stage III B
Tier Max.
Tier 4
Aspiration
T
Weight
400 kg
Bore
106.5 mm
Stroke
110 mm

More technical details, like: type of cooling, alternative name, model series are available in the full technical specs.
