3H50TIC Hatz 3H50TIC Specifications & Technical Data (2018—2026)

The Hatz 3H50TIC engine, manufactured since 2018, is a machine component with a displacement of 1.464 liters and a weight of 327 k…

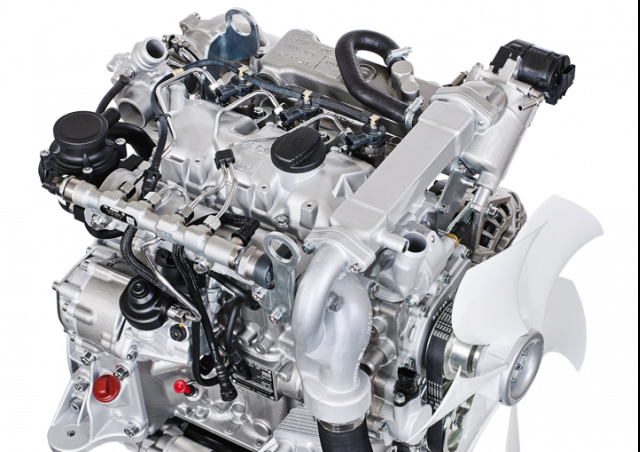

The Hatz 3H50TIC engine, manufactured since 2018, is a machine component with a displacement of 1.464 liters and a weight of 327 kilograms. It features a maximum torque of 185 Nm and is equipped with three cylinders. The bore measures 84 mm, while the stroke is 88 mm. With a minimum power output of 19 kW and a maximum power output of 42 kW, this engine operates at a speed of 2800 RPM.

Engines Hatz 3H50TIC

Technical specs - 3H50TIC Hatz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
3
Displacement
1.464 l
Layout
Inline
min. Power
19 kW
max. Power
42 kW
RPM
2800
Max. torque
185 Nm
Tier Max.
Tier 4f
Aspiration
T
Weight
327 kg
Type of cooling
w
Bore
84 mm
Stroke
88 mm
Model series
H

More technical details, like: tier min., alternative name are available in the full technical specs.
