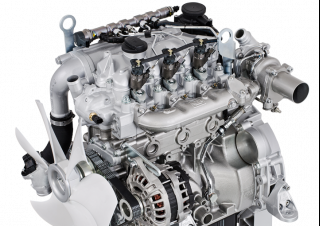

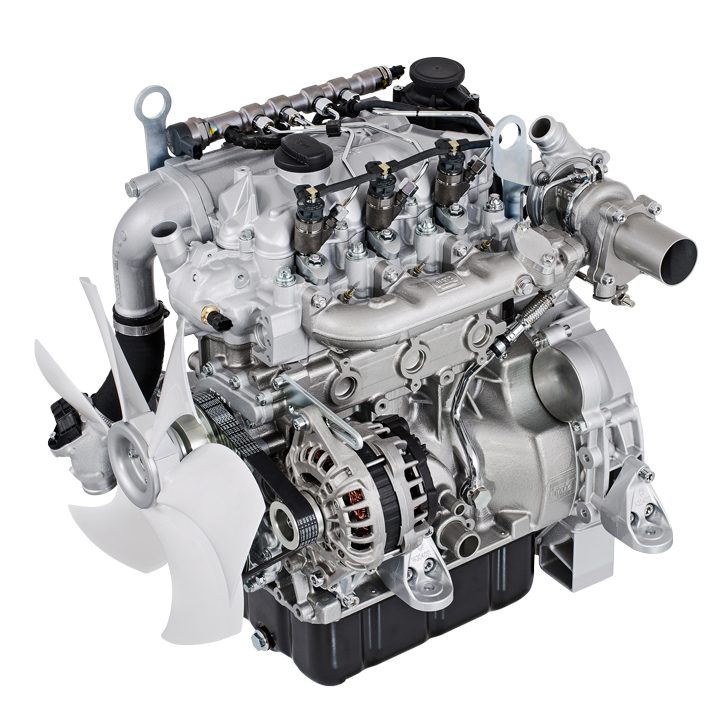

3H50TI Hatz 3H50TI Specifications & Technical Data (2018—2026)

The Hatz 3H50TI engine, manufactured since 2018, is a machine component with a displacement of 1.464 liters and a weight of 306 ki…

The Hatz 3H50TI engine, manufactured since 2018, is a machine component with a displacement of 1.464 liters and a weight of 306 kilograms. It features a maximum torque of 200 Nm and is equipped with three cylinders. The bore measures 84 mm, while the stroke measures 88 mm. With a minimum power output of 21.5 kW and a maximum power output of 46 kW, this engine operates at a speed of 3000 RPM.

Engines Hatz 3H50TI

Technical specs - 3H50TI Hatz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
3
Displacement
1.464 l
Layout
Inline
min. Power
21.5 kW
max. Power
46 kW
RPM
3000
Max. torque
200 Nm
Tier Max.
Tier 2
Aspiration
T
Weight
306 kg
Type of cooling
w
Bore
84 mm
Stroke
88 mm
Model series
H

More technical details, like: tier min., alternative name are available in the full technical specs.
