3H50T Hatz 3H50T Specifications & Technical Data (2019—2026)

The Hatz 3H50T engine, manufactured since 2019, is a machine component with a displacement of 1.464 liters and a weight of 147 kil…

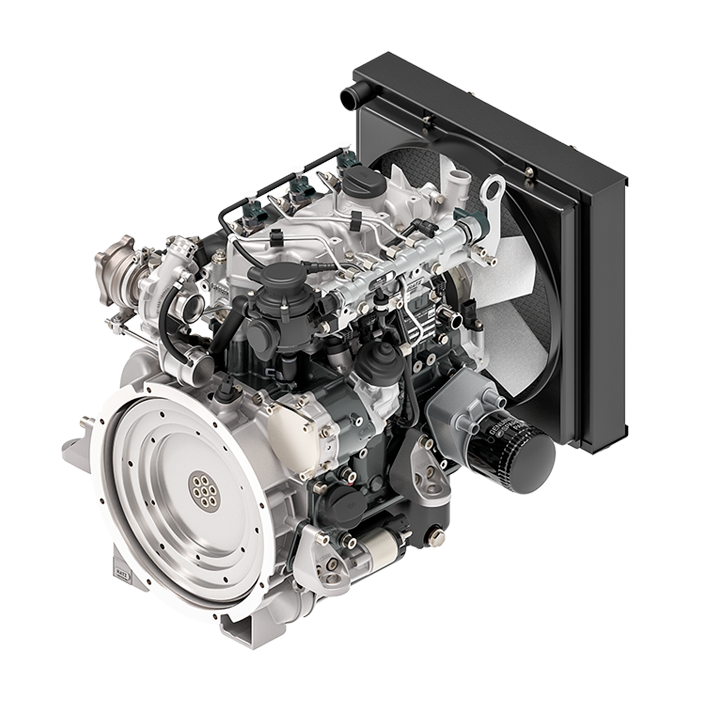

The Hatz 3H50T engine, manufactured since 2019, is a machine component with a displacement of 1.464 liters and a weight of 147 kilograms. It features a maximum torque of 130 Nm and is equipped with three cylinders. The bore measures 84 mm, while the stroke is 88 mm. With a maximum power output of 18.4 kW, this engine operates at a speed of 2600 RPM.

Engines Hatz 3H50T

Technical specs - 3H50T Hatz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
3
Displacement
1.464 l
Layout
Inline
max. Power
18.4 kW
RPM
2600
Max. torque
130 Nm
Tier Max.
Tier 4f
Aspiration
T
Weight
147 kg
Type of cooling
w
Bore
84 mm
Stroke
88 mm
Model series
H

More technical details, like: min. power, tier min., alternative name are available in the full technical specs.
