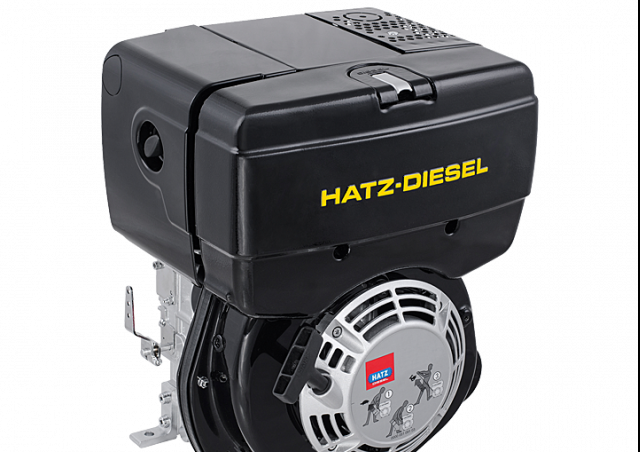

1B50 Hatz 1B50 Specifications & Technical Data (2017—2026)

The Hatz 1B50 engine, manufactured since 2017, is a machine component with a displacement of 0.517 liters and a weight of 56.5 kil…

The Hatz 1B50 engine, manufactured since 2017, is a machine component with a displacement of 0.517 liters and a weight of 56.5 kilograms. It has a maximum torque of 27.4 Nm and features a single cylinder. The engine has a bore of 93 mm and a stroke of 76 mm. With a minimum power output of 3.5 kW and a maximum power output of 8.5 kW, it operates at a speed of 3600 RPM.

Engines Hatz 1B50

Technical specs - 1B50 Hatz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
1
Displacement
0.517 l
Layout
Inline
min. Power
3.5 kW
max. Power
8.5 kW
RPM
3600
Max. torque
27.4 Nm
Tier Max.
Tier 4f
Weight
56.5 kg
Type of cooling
l
Bore
93 mm
Stroke
76 mm
Model series
B

More technical details, like: tier min., aspiration, alternative name are available in the full technical specs.

Download datasheets (PDF)

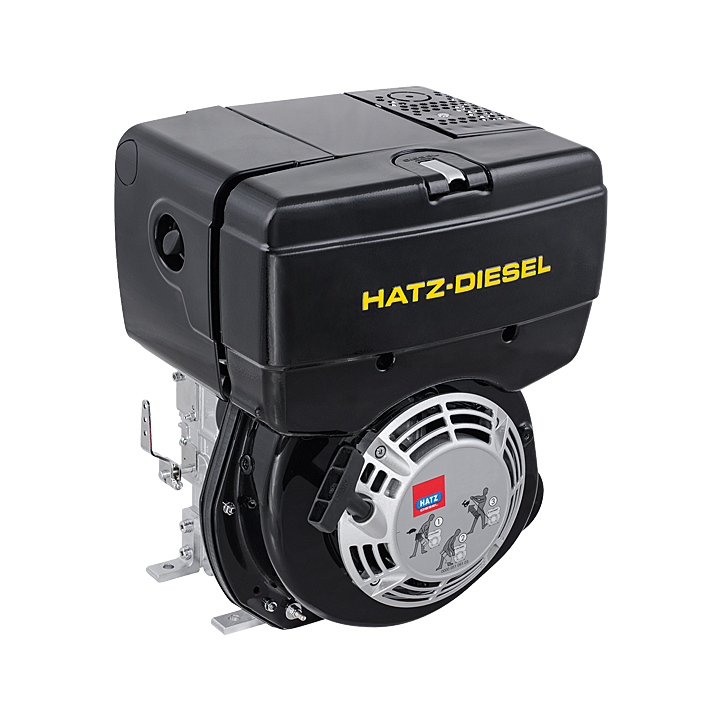

Hatz 1B50 overview

Emission

Environmental aspects

At Hatz, protection of the environment is regarded as a key component of the company objectives. For example, the B-series engines have been exclusively produced and marketed for many years in accordance with the specification of the EPA Tier 4 exhaust directive, even in countries where no limits are imposed on exhaust emissions. That is why the engines will fulfill the requirements of EU Stage V as well.


Injection

SCS (Single Cam System)

One of the numerous innovations of the B-series is the single cam system, where the injection pump and the two valves are operated by just one cam and rocker arm. This design detail, for which Hatz has applied for a patent, substantially determines the very short overall length of the engine. In addition, the camshaft is driven via a gear wheel which is, at the same time, a component and drive of the oil pump.
