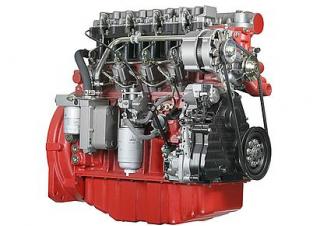

TD 2011 L4 I Deutz TD 2011 L4 I Specifications & Technical Data (2011—2026)

The Deutz TD 2011 L4 I engine, manufactured since 2011, is a machine component with a displacement of 3.6 liters and a weight of 2…

The Deutz TD 2011 L4 I engine, manufactured since 2011, is a machine component with a displacement of 3.6 liters and a weight of 267 kilograms. It features a maximum torque of 240 Nm and is equipped with four cylinders. The bore measures 96 mm, while the stroke is 125 mm. With a maximum power output of 57.6 kW, this engine operates at a speed of 2600 RPM.

Technical specs - TD 2011 L4 I Deutz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
4
Displacement
3.6 l
Layout
Inline
max. Power
57.6 kW
RPM
2600
Max. torque
240 Nm
Tier Min.
EU II / US T2
Tier Max.
EU IIIA / US T3
Aspiration
T
Weight
267 kg
Type of cooling
w
Bore
96 mm
Stroke
125 mm
Model series
TD

More technical details, like: min. power, alternative name are available in the full technical specs.

Download datasheets (PDF)

Deutz TD 2011 L4 I overview

Cool

Engine Specifications

2, 3 and 4-cylinder engines and 4-cylinder engines with inline turbocharging, oil-cooled or optionally with an integrated cooling system. The 4-cylinder engine is also available with water cooling and charge air cooling. The compact engine design and an optional PTO drive reduce the installation costs and increase the number of applications. Best cold starting properties even under extreme conditions. The robust engine design allows worldwide operation even with high sulphur fuels. All parts for maintenance on one side of the engine, long oil change intervals and easy changing of engine fluids reduce the running costs and increase the availability of the machinery. An efficient injection system and optimized combustion ensure optimum engine performance at low consumption. The engines in the power range < 56 kW meets to the US EPA Tier 4 i.
