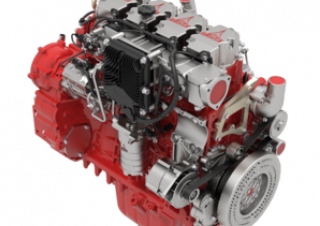

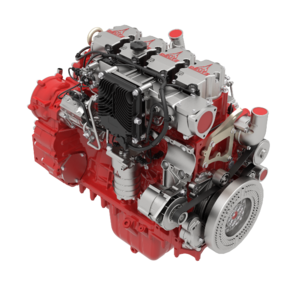

TCD 9.0 L4 Deutz TCD 9.0 L4 Specifications & Technical Data (2019—2026)

The Deutz TCD 9.0 L4 engine, manufactured since 2019, is a machine component with a displacement of 9 liters and a weight of 808 k…

The Deutz TCD 9.0 L4 engine, manufactured since 2019, is a machine component with a displacement of 9 liters and a weight of 808 kilograms. It has a maximum torque of 1710 Nm and is equipped with 4 cylinders. The bore measures 135 mm, while the stroke is 157 mm. With a maximum power output of 303 kW, this engine operates at a speed of 2100 RPM.

Engines Deutz TCD 9.0 L4

Technical specs - TCD 9.0 L4 Deutz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
4
Displacement
9 l
Layout
Inline
max. Power
303 kW
RPM
2100
Max. torque
1710 Nm
Tier Min.
EU IIIA / US T4 / CN 4
Tier Max.
EU V
Aspiration
T
Weight
808 kg
Type of cooling
w
Bore
135 mm
Stroke
157 mm
Model series
TCD

More technical details, like: min. power, alternative name are available in the full technical specs.
