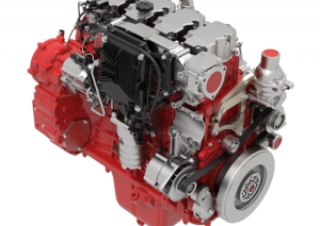

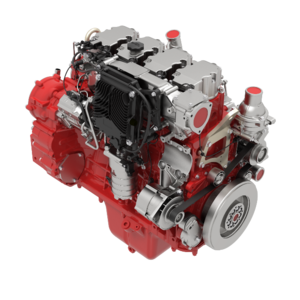

TCD 9.0 L4 Deutz TCD 9.0 L4 Specifications & Technical Data (2018—2019)

The Deutz TCD 9.0 L4 engine, manufactured from 2018 to 2019, is a machine component with a displacement of 9 liters and a weight o…

The Deutz TCD 9.0 L4 engine, manufactured from 2018 to 2019, is a machine component with a displacement of 9 liters and a weight of 750 kilograms. It has a maximum torque of 1700 Nm and is equipped with 4 cylinders. The bore measures 135 mm, while the stroke measures 157 mm. With a maximum power output of 300 kW, this engine operates at a speed of 2100 RPM.

Engines Deutz TCD 9.0 L4

Technical specs - TCD 9.0 L4 Deutz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
4
Displacement
9 l
Layout
Inline
max. Power
300 kW
RPM
2100
Max. torque
1700 Nm
Tier Min.
Stage EU IIIA
Tier Max.
Stage EU V
Aspiration
T
Weight
750 kg
Type of cooling
w
Bore
135 mm
Stroke
157 mm
Model series
TCD

More technical details, like: min. power, alternative name are available in the full technical specs.
