TCD 2013 L6 4V Deutz TCD 2013 L6 4V Specifications & Technical Data (2012—2026)

The Deutz TCD 2013 L6 4V is a machine component manufactured by Deutz since 2012. It has a displacement of 7.2 liters and weighs 6…

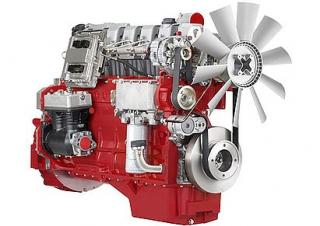

The Deutz TCD 2013 L6 4V is a machine component manufactured by Deutz since 2012. It has a displacement of 7.2 liters and weighs 650 kilograms. With 6 cylinders, it has a bore of 108 mm and a stroke of 130 mm. It can generate a maximum torque of 1200 Nm and a maximum power of 213 kW at 2100 RPM.

Technical specs - TCD 2013 L6 4V Deutz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
7.2 l
Layout
Inline
max. Power
213 kW
RPM
2100
Max. torque
1200 Nm
Tier Min.
EU III / EU IV
Tier Max.
EU V
Aspiration
T
Weight
650 kg
Type of cooling
w
Bore
108 mm
Stroke
130 mm
Model series
TCD

More technical details, like: min. power, alternative name are available in the full technical specs.

Download datasheets (PDF)

Deutz TCD 2013 L6 4V overview

Cool

Engine Features

Water-cooled 4 and 6-cylinder inline engines with turbocharging and charge air cooling. The powerful DEUTZ Common-Rail (DCR®) injection system and the electronic engine control (EMR 3) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption. The 4-cylinder is also available with a mechanical injection system. Best cold starting properties even under extreme conditions. Low noise emissions due to acoustically optimized components with very smooth running and high durability. The compact engine design and three PTO drive possibilities integrated into the gear drive reduce the installation costs and increase the number of applications. Wet cylinder liners, long oil change intervals and easy changing of the engine fluids reduce the running and service costs and increase the availability of the machinery. The robust engine design allows worldwide operation even with high sulphur fuels.
