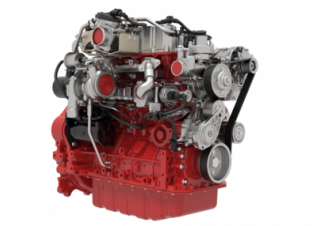

Deutz TCD 2.9 L4 Specifications & Technical Data (2018-2025)

The Deutz TCD 2.9 L4 engine, manufactured since 2018, is a machine component with a displacement of 2.9 liters and a weight of 237…

The Deutz TCD 2.9 L4 engine, manufactured since 2018, is a machine component with a displacement of 2.9 liters and a weight of 237 kilograms. It features a maximum torque of 300 Nm and is equipped with four cylinders. The bore measures 92 mm, while the stroke is 110 mm. With a maximum power output of 55.4 kW, this engine operates at a speed of 2600 RPM.

Technical specs - TCD 2.9 L4 Deutz

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
4
Displacement
2.9 l
Layout
Inline
max. Power
55.4 kW
RPM
2600
Max. torque
300 Nm
Tier Min.
EU IIIB / US T4f
Tier Max.
EU V
Aspiration
T
Weight
237 kg
Type of cooling
w
Bore
92 mm
Stroke
110 mm
Model series
TCD

More technical details, like: min. power, alternative name are available in the full technical specs.
