QSX15 400 Cummins QSX15 400 Specifications & Technical Data (2011—2021)

The Cummins QSX15 400 engine, manufactured from 2011 to 2021, has a displacement of 15 liters and weighs 1365 kilograms. It is equ…

The Cummins QSX15 400 engine, manufactured from 2011 to 2021, has a displacement of 15 liters and weighs 1365 kilograms. It is equipped with 6 cylinders, each with a bore of 137 mm and a stroke of 169 mm. The engine has a maximum torque of 2034 Nm and a maximum power output of 298 kW at 2100 RPM.

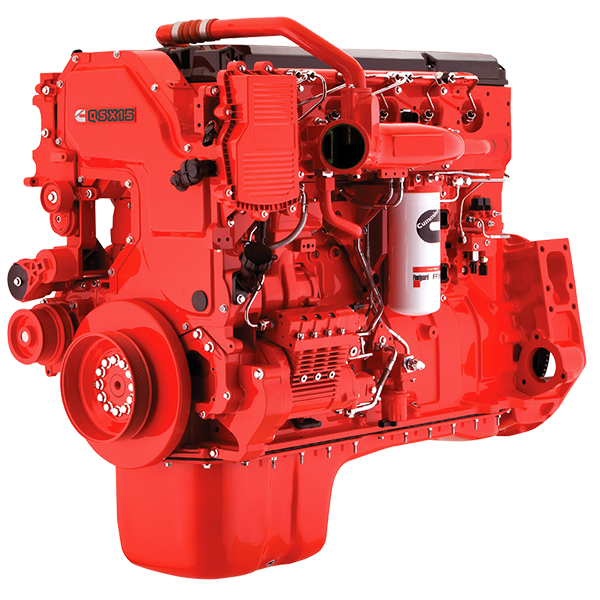

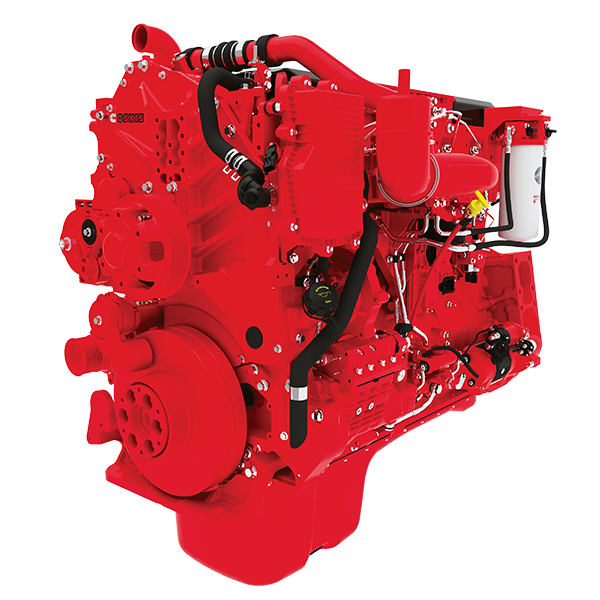

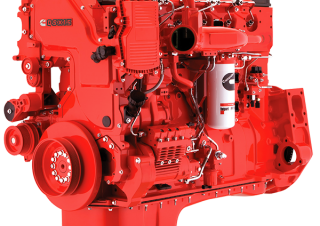

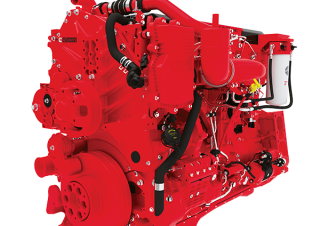

Engines Cummins QSX15 400
Engines Cummins QSX15 400
Engines Cummins QSX15 400
Engines Cummins QSX15 400

Technical specs - QSX15 400 Cummins

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
15 l
Layout
Inline
max. Power
298 kW
RPM
2100
Max. torque
2034 Nm
Tier Max.
EU IIIB / Tier 4i
Aspiration
T
Weight
1365 kg
Bore
137 mm
Stroke
169 mm
Model series
QSX

More technical details, like: min. power, tier min., type of cooling, alternative name are available in the full technical specs.
