QSX11.9 500 Cummins QSX11.9 500 Specifications & Technical Data (2011—2026)

The Cummins QSX11.9 500 engine, manufactured since 2011, has a displacement of 11.9 liters and weighs 1197 kilograms. It is equipp…

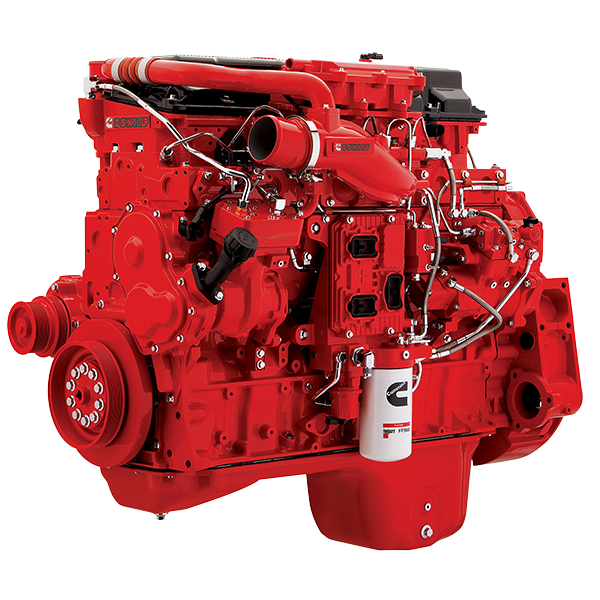

The Cummins QSX11.9 500 engine, manufactured since 2011, has a displacement of 11.9 liters and weighs 1197 kilograms. It is equipped with 6 cylinders, each with a bore of 130 mm and a stroke of 150 mm. The engine has a maximum torque of 2169 Nm and operates at a minimum power of 261 kW and a maximum power of 373 kW at 1800 RPM.

Engines Cummins QSX11.9 500

Technical specs - QSX11.9 500 Cummins

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
11.9 l
Layout
Inline
min. Power
261 kW
max. Power
373 kW
RPM
1800
Max. torque
2169 Nm
Tier Max.
EU IIIB / Tier 4i
Aspiration
T
Weight
1197 kg
Bore
130 mm
Stroke
150 mm
Model series
QSX

More technical details, like: tier min., type of cooling, alternative name are available in the full technical specs.
