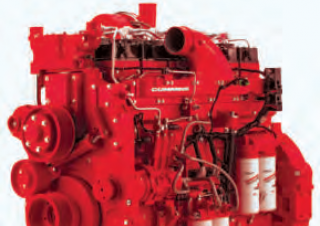

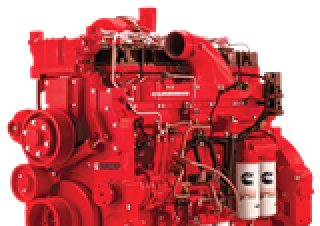

QSK19 Cummins QSK19 Specifications & Technical Data (2017—2026)

The Cummins QSK19 engine, manufactured since 2017, is an 18.9 liter machine component weighing 1928 kilograms. It is equipped with…

The Cummins QSK19 engine, manufactured since 2017, is an 18.9 liter machine component weighing 1928 kilograms. It is equipped with 6 cylinders, each with a bore and stroke of 159 mm. The engine has a maximum torque of 2755 Nm and operates at a minimum power of 337 kW and a maximum power of 522 kW at 1800 RPM.

Engines Cummins QSK19
Engines Cummins QSK19
Engines Cummins QSK19
Engines Cummins QSK19
Engines Cummins QSK19
Engines Cummins QSK19

Technical specs - QSK19 Cummins

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
18.9 l
Layout
Inline
min. Power
377 kW
max. Power
522 kW
RPM
1800
Max. torque
2755 Nm
Tier Max.
Tier 3 / Stage IIIA
Aspiration
T
Weight
1928 kg
Bore
159 mm
Stroke
159 mm
Model series
QSK

More technical details, like: tier min., type of cooling, alternative name are available in the full technical specs.

Download datasheets (PDF)

Cummins QSK19 overview

Injection

Cummins QSK19 For Emissions-Regulated Mining Applications

QSK19 engines have been redesigned to meet legislated emissions levels for both U.S. and European regulations. Advanced in-cylinder combustion technology combined with the Modular Common Rail fuel system allows the QSK19 to meet low-emissions standards without compromise.
