ISG12 Cummins ISG12 Specifications & Technical Data (2022—2026)

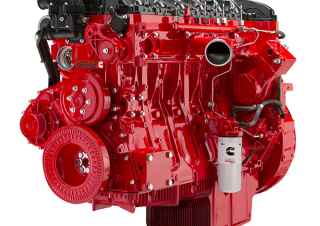

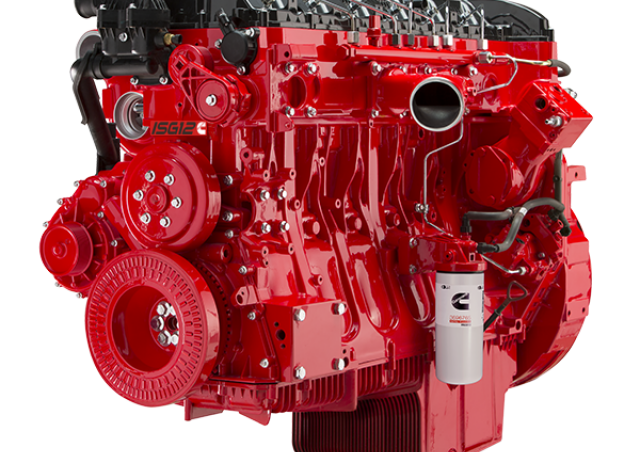

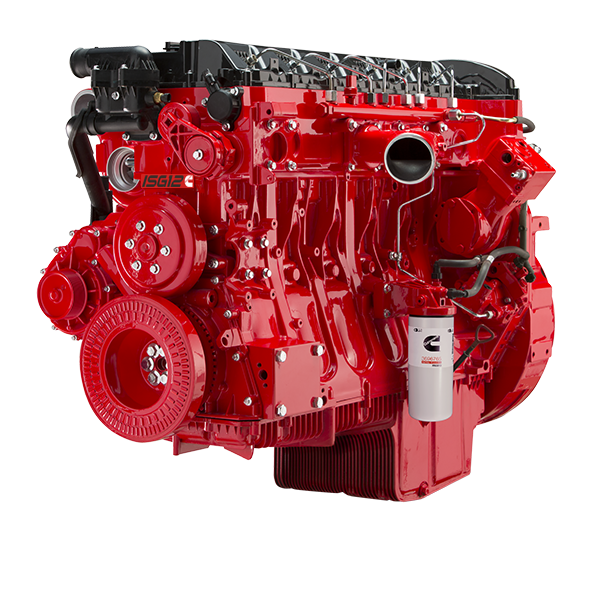

The Cummins ISG12 engine, manufactured since 2022, is a 12-liter machine component weighing 862 kilograms. It has a maximum torque…

The Cummins ISG12 engine, manufactured since 2022, is a 12-liter machine component weighing 862 kilograms. It has a maximum torque of 2299 Nm and operates at a minimum power of 261 kW and a maximum power of 373 kW at 2300 RPM.

Engines Cummins ISG12

Technical specs - ISG12 Cummins

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Displacement
12 l
Layout
Inline
min. Power
261 kW
max. Power
373 kW
RPM
2300
Max. torque
2299 Nm
Tier Min.
Euro IV
Tier Max.
Euro V
Weight
862 kg
Model series
ISG

More technical details, like: no. of cylinders, aspiration, type of cooling, bore, stroke, alternative name are available in the full technical specs.

Download datasheets (PDF)

Cummins ISG12 overview

Dimension

Integrated Engine Compression Brake Increases Safety While Reducing Maintenance Cost

27 hp (20 kW) per litre absorption performance with no impact on engine height. Better downhill control capability.


Injection

Advanced Architecture Ensures Proven Reliability

Modular component architecture significantly reduces the number of parts. Cummins XPI fuel system along with an optimised combustion system provide excellent cold start performance in extreme temperatures and high altitude: -35°C unaided cold start, 7 second smooth start. Stiffer design through advanced component design and production techniques.
