Caterpillar C9.3B Specifications & Technical Data (2019-2025)

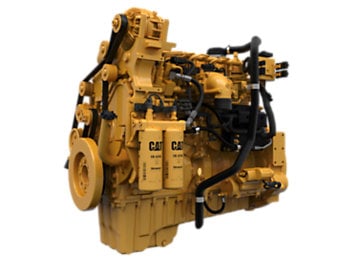

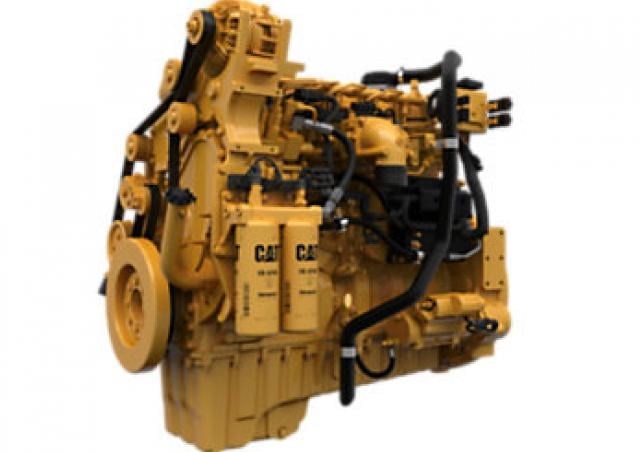

The Caterpillar C9.3B engine is a machine component manufactured by Caterpillar since 2019. It has a displacement of 9.3 liters an…

The Caterpillar C9.3B engine is a machine component manufactured by Caterpillar since 2019. It has a displacement of 9.3 liters and weighs 865 kilograms. With 6 cylinders, it has a bore of 115 mm and a stroke of 149 mm. The engine has a maximum torque of 2088 Nm and operates at a maximum speed of 2200 RPM. It has a minimum power output of 250 kW and a maximum power output of 340 kW.

Engines Caterpillar C9.3B

Technical specs - C9.3B Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
9.3 l
Layout
Inline
min. Power
250 kW
max. Power
340 kW
RPM
2200
Max. torque
2088 Nm
Tier Max.
EU V / US T4f
Weight
865 kg
Bore
115 mm
Stroke
149 mm

More technical details, like: tier min., aspiration, type of cooling, alternative name, model series are available in the full technical specs.
