C9.3 Caterpillar C9.3 Specifications & Technical Data (2019—2026)

The Caterpillar C9.3 engine, manufactured since 2019, has a displacement of 9.3 liters and a weight of 885 kilograms. It is equipp…

The Caterpillar C9.3 engine, manufactured since 2019, has a displacement of 9.3 liters and a weight of 885 kilograms. It is equipped with 6 cylinders, each with a bore of 115 mm and a stroke of 149 mm. The engine has a maximum torque of 1719 Nm and operates at a minimum power of 224 kW and a maximum power of 298 kW at 2200 RPM.

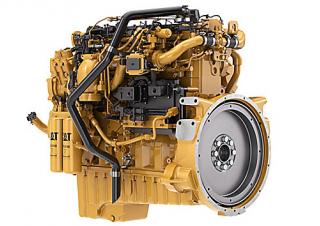

Engines Caterpillar C9.3
Engines Caterpillar C9.3
Engines Caterpillar C9.3
Engines Caterpillar C9.3

Technical specs - C9.3 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
6
Displacement
9.3 l
Layout
Inline
min. Power
224 kW
max. Power
298 kW
RPM
2200
Max. torque
1719 Nm
Tier Max.
US T4f
Weight
885 kg
Bore
115 mm
Stroke
149 mm

More technical details, like: tier min., aspiration, type of cooling, alternative name, model series are available in the full technical specs.

Download specalog and datasheets (PDF)

Caterpillar C9.3 overview

Emission

U.S. EPA Tier 4 Interim, EU Stage IIIB Aftertreatment / Clean Emissions Control Equipment

Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC).NOx Reduction System (NRS).Flex pipe connection kit with 90° rotatable elbows to attach to Cat Regeneration System Inlet.Available in 12 volt or 24 volt systems.


Power

PTO Configuration

Dual rear PTO configurationAvailable SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage IV).


Cool

Components

Open crankcase ventilation systemOil coolerOil fillerLube oil filterOil dipstickGear driven oil pumpChoice of front, rear or center sumpsOpen crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage IV)


Injection

Electronic Control Features

Electronic control systemOver-foam wiring harnessAutomatic altitude compensationPower compensated for fuel temperatureConfigurable software featuresEngine monitoring system SAE J1939 broadcast and controlIntegrated Electronic Control Unit (ECU)Remote fan control
