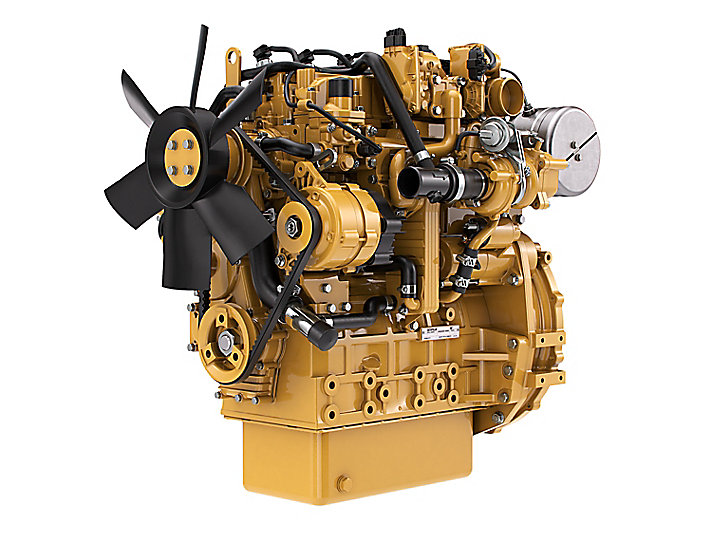

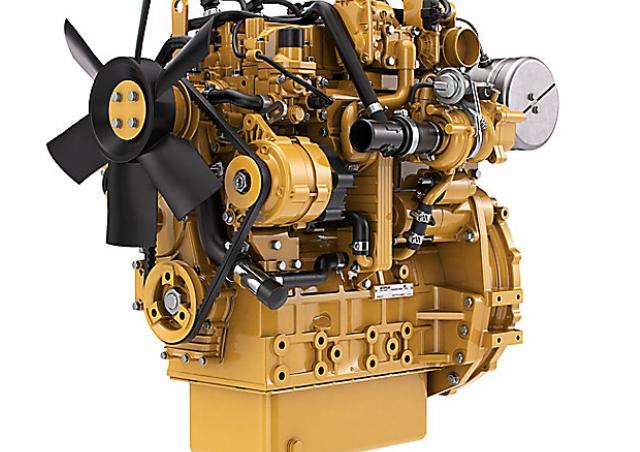

C2.2 Caterpillar C2.2 Specifications & Technical Data (2019—2026)

The Caterpillar C2.2 engine is a machine component that has been manufactured since 2019. It has a displacement of 2.2 liters and …

The Caterpillar C2.2 engine is a machine component that has been manufactured since 2019. It has a displacement of 2.2 liters and weighs 230 kilograms. With a maximum torque of 208 Nm, it is equipped with four cylinders and has a bore of 84 mm and a stroke of 100 mm. The engine has a minimum power output of 36.4 kW and a maximum power output of 50 kW, operating at a speed of 2800 RPM.

Engines Caterpillar C2.2

Technical specs - C2.2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
4
Displacement
2.2 l
Layout
Inline
min. Power
36.4 kW
max. Power
50 kW
RPM
2800
Max. torque
208 Nm
Tier Max.
US T4f
Weight
230 kg
Bore
84 mm
Stroke
100 mm

More technical details, like: tier min., aspiration, type of cooling, alternative name, model series are available in the full technical specs.
