C1.5 Caterpillar C1.5 Specifications & Technical Data (2014—2019)

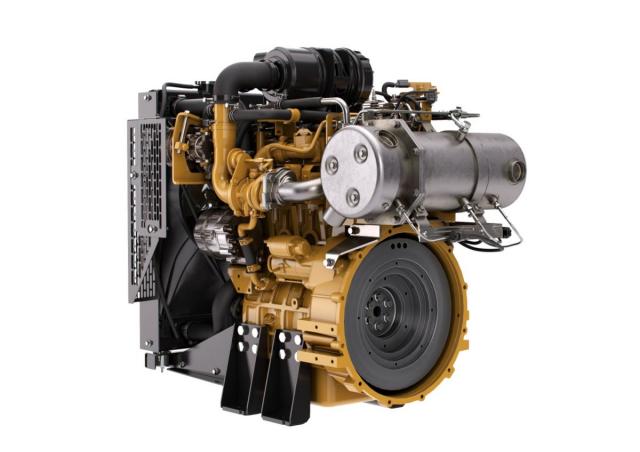

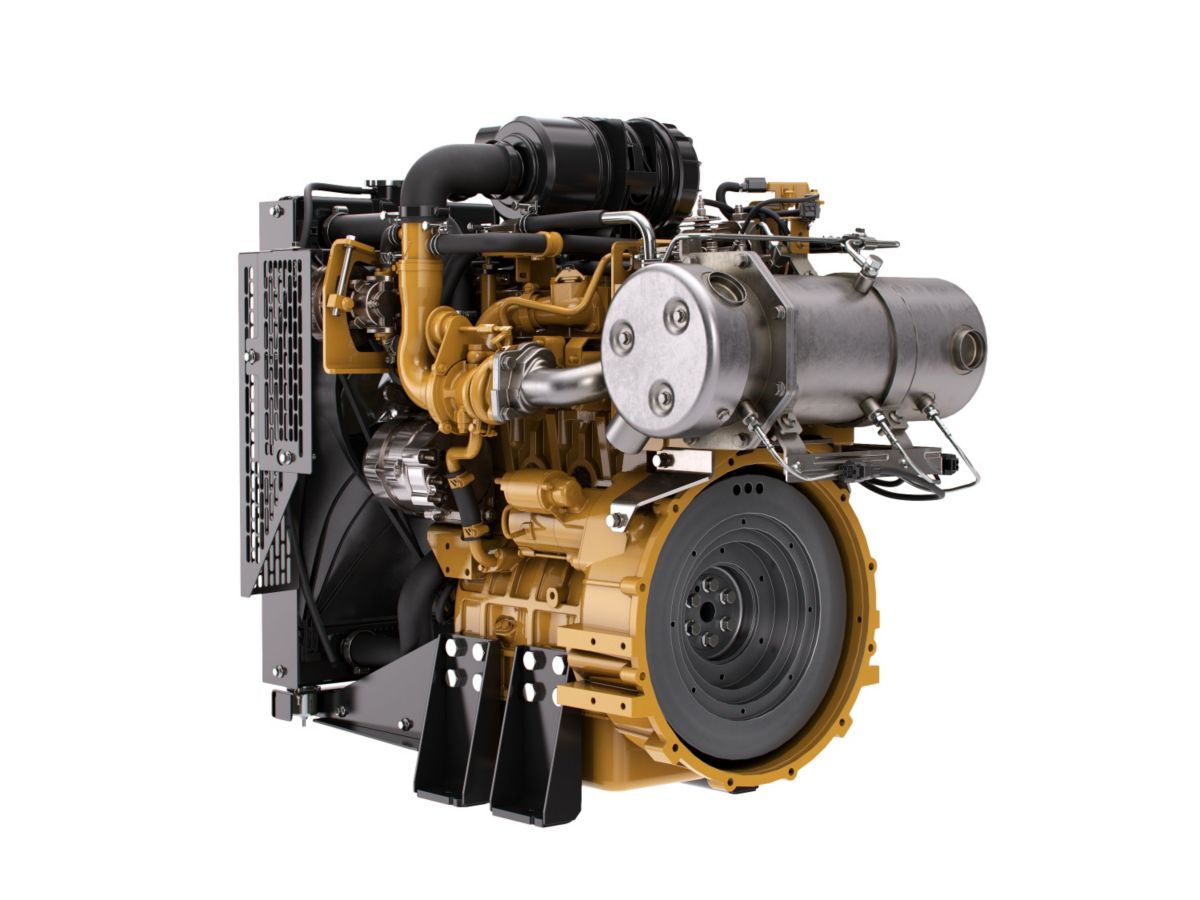

The Caterpillar C1.5 engine, manufactured from 2014 to 2019, is a compact machine component with a displacement of 1.496 liters. W…

The Caterpillar C1.5 engine, manufactured from 2014 to 2019, is a compact machine component with a displacement of 1.496 liters. Weighing 148 kilograms, it offers a maximum torque of 86 Nm. This engine features three cylinders with a bore of 84 mm and a stroke of 90 mm. Operating at a maximum speed of 2800 RPM, it provides a minimum power output of 27 kW and a maximum power output of 27 kW.

Engines Caterpillar C1.5

Technical specs - C1.5 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
3
Displacement
1.496 l
Layout
Inline
min. Power
27 kW
max. Power
27 kW
RPM
2800
Max. torque
86 Nm
Tier Max.
US T4f
Weight
148 kg
Bore
84 mm
Stroke
90 mm

More technical details, like: tier min., aspiration, type of cooling, alternative name, model series are available in the full technical specs.
