3616 Caterpillar 3616 Specifications & Technical Data (2014—2026)

The Caterpillar 3616 engine, manufactured since 2014, has a displacement of 295.6 liters and a weight of 29950 kilograms. It is eq…

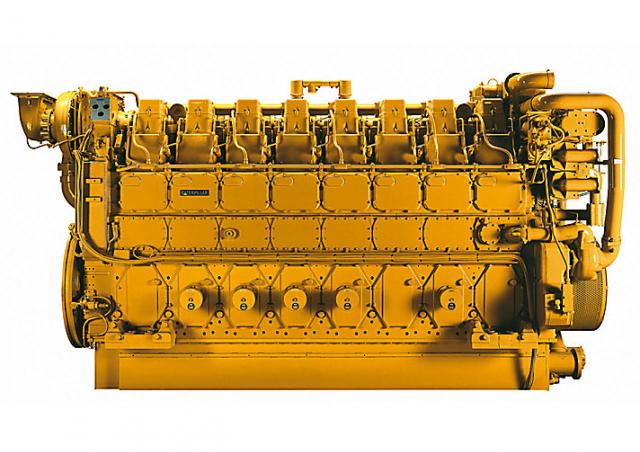

The Caterpillar 3616 engine, manufactured since 2014, has a displacement of 295.6 liters and a weight of 29950 kilograms. It is equipped with 16 cylinders, each with a bore of 280 mm and a stroke of 300 mm. The engine has a minimum power output of 4160 kW and a maximum power output of 4920 kW at 1000 RPM.

Engines Caterpillar 3616

Technical specs - 3616 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

No. of cylinders
16
Displacement
295.6 l
Layout
Inline
min. Power
4160 kW
max. Power
4920 kW
RPM
1000
Tier Max.
non certified
Weight
29950 kg
Bore
280 mm
Stroke
300 mm

More technical details, like: max. torque, tier min., aspiration, type of cooling, alternative name, model series are available in the full technical specs.
