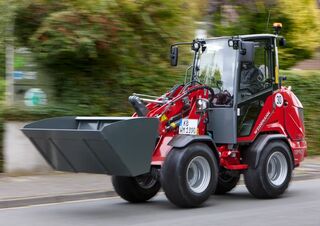

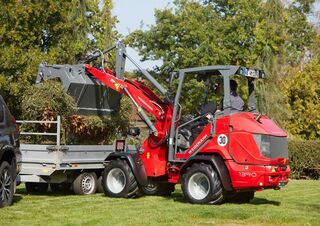

    Lectura specs Agricultural machinery Yard loader Yard loader Weidemann Weidemann 1390 specifications

    Technical specs - 1390 Weidemann

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Weight 2.7 t
    Standard tyres 10.0/75-15.3 AS ET 80
    Tipping load 2071 kg
    Wheel base 1.732 m
    Travel speed 20 km/h
    Steering mode KL
    max. height at the shovel pivot point 3.004 m
    Overcharging height 2.68 m
    Max. discharge height 2.12 m
    Turning radius outside 3 m
    Turning radius inside 1.56 m
    Transport length 3.57 m
    Transport width 1.044 m
    Transport height 2.32 m
    Engine manuf. Yanmar
    Engine type 3TNV80FT
    Engine power 18.4 kW
    Engine power 25 HP
    Displacement 1.226 l
    Revolutions at max torque 2600 rpm
    No. of cylinders 3
    Emission level V
    operating weight ###
    Dimension lxwxh ###
    Max. torque ###
    Cylinder bore x stroke ###
    Weight ###

    1390 Weidemann - Special equipment

    • Cabin
    • telescopic
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
