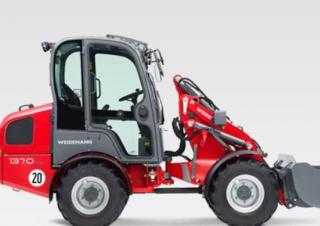

1370 CX Weidemann 1370 CX Specifications & Technical Data (2007—2015)

Weight: 2.69t – Standard tyres: 10.0/75-15.3 AS ET80 – Steering mode: KL – Max. discharge height: 2.024m – Turning radius outside: 2.531m – Transport length: 4.563m

1370 CX

Years of manufacture: 2007—2015

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1370 CX Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.69 t

Standard tyres: 10.0/75-15.3 AS ET80

Steering mode: KL

Max. discharge height: 2.024 m

Turning radius outside: 2.531 m

Transport length: 4.563 m

Transport width: 1.044 m

Transport height: 2.225 m

Engine manuf.: Perkins

Engine type: 404D-22

Engine power: 36 kW

Displacement: 2.216 l

Revolutions at max torque: 2600 rpm

More technical details, like: operating weight, tipping load, wheel base, travel speed, max. height at the shovel pivot point, overcharging height, turning radius inside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, rated speed, engine output - net, transmission type, tyre - size, wheelbase, length - shovel on ground, height - over cab, ground clearance, width - over tyres, shovel - type, shovel - width, full lift dump height, full lift reach, loader - arm type, loader - geometry, dump angle - at dump, dump angle - maximum, height - pivot pin, full lift dump height - maximum, height - maximum, dig depth, turning radius - over shovel, fuel tank, straight tipping load, full turn tipping load, operating weight are available in the full technical specs.

Buy full specs

Special equipment

Cabin: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Weidemann 1370 CX FAQ

When was the Weidemann 1370 CX manufactured?

The Weidemann 1370 CX was manufactured from 2007 to 2015.

What is the weight of the Weidemann 1370 CX?

The Weidemann 1370 CX has a weight of 2.69 tonnes.

What are the physical dimensions of the Weidemann 1370 CX yard loader?

The Weidemann 1370 CX has a transport length of 4.56 meters, a transport width of 1.04 meters, and a transport height of 2.23 meters.

What are the maneuverability specifications of the Weidemann 1370 CX?

The Weidemann 1370 CX features articulated-frame steering and has an outside turning radius of 2.531 meters.

What are the tyre specifications for the Weidemann 1370 CX?

The Weidemann 1370 CX is equipped with standard tyres sized 10.0/75-15.3 AS ET80.

What is the maximum discharge height of the Weidemann 1370 CX yard loader?

The Weidemann 1370 CX has a maximum discharge height of 2.02 meters.
