1350 CC Weidemann 1350 CC Specifications & Technical Data (2011—2015)

Model rating
10,00 / 10

Weight: 2.55t – Standard tyres: 10.0/75-15.3 AS ET80 – Steering mode: KL – Max. discharge height: 2.204m – Turning radius outside: 2.531m – Transport length: 4.523m

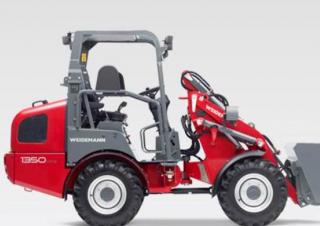

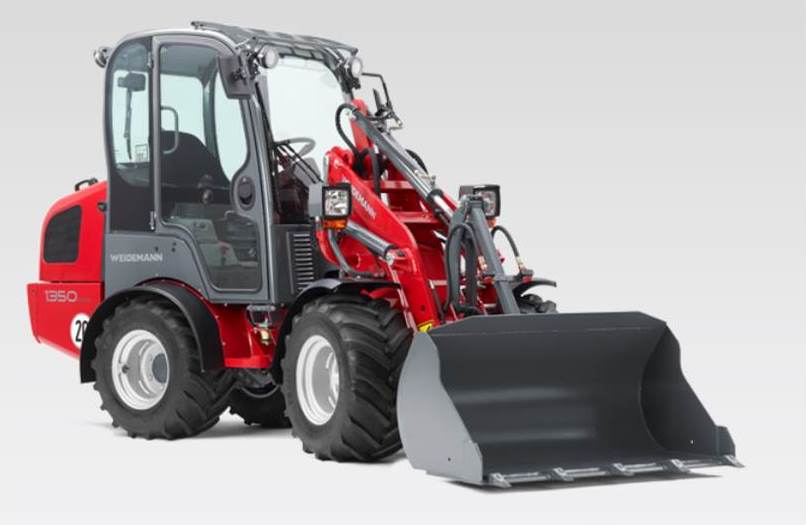

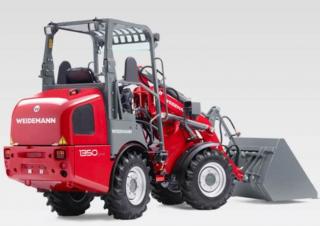

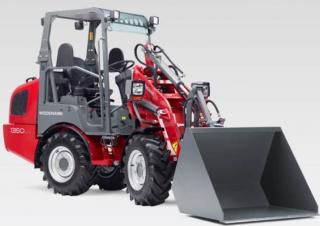

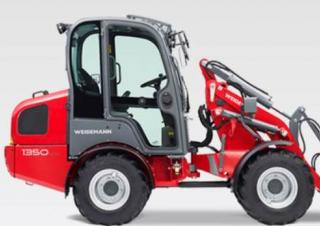

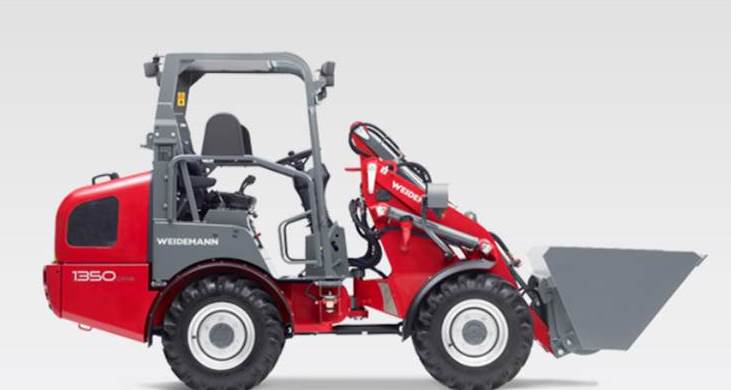

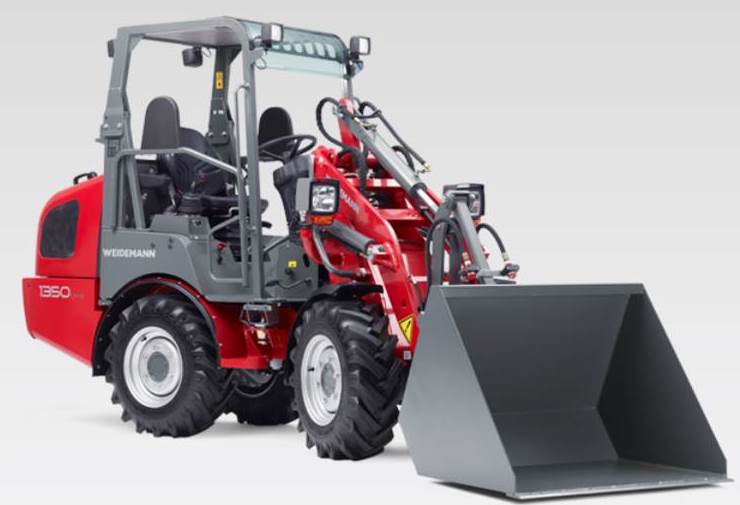

Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC
Yard loader Weidemann 1350 CC

Technical specs - 1350 CC Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.55 t
Standard tyres
10.0/75-15.3 AS ET80
Steering mode
KL
Max. discharge height
2.204 m
Turning radius outside
2.531 m
Transport length
4.523 m
Transport width
1.044 m
Transport height
2.225 m
Engine manuf.
Perkins
Engine type
404D-22de
Engine power
32 kW
Displacement
2.216 l
Revolutions at max torque
2600 rpm
Emission level
III A

More technical details, like: operating weight, tipping load, wheel base, travel speed, max. height at the shovel pivot point, overcharging height, turning radius inside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke...

More technical details, like: operating weight, tipping load, wheel base, travel speed, max. height at the shovel pivot point, overcharging height, turning radius inside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, engine manufacturer, engine model, rated speed, engine output - net, transmission type, tyre - size, wheelbase, length - shovel on ground, height - over cab, ground clearance, width - over tyres, shovel - type, shovel - width, full lift dump height, full lift reach, loader - arm type, loader - geometry, dump angle - at dump, dump angle - maximum, height - pivot pin, full lift dump height - maximum, height - maximum, dig depth, turning radius - over shovel, fuel tank, straight tipping load, full turn tipping load, operating weight are available in the full technical specs.

Buy full specs

Special equipment

Cabin
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Weidemann 1350 CC FAQ

When was the Weidemann 1350 CC manufactured?

The Weidemann 1350 CC was manufactured from 2011 to 2015.

What is the weight of the Weidemann 1350 CC?

The Weidemann 1350 CC has a weight of 2.55 tonnes.

What are the transport dimensions of the Weidemann 1350 CC yard loader?

The Weidemann 1350 CC has a transport length of 4.52 meters, a transport width of 1.04 meters, and a transport height of 2.23 meters.

What are the maneuverability specifications of the Weidemann 1350 CC?

The Weidemann 1350 CC features articulated-frame steering and has an outside turning radius of 2.531 meters.

What are the standard tyre specifications for the Weidemann 1350 CC?

The Weidemann 1350 CC is equipped with standard tyres sized 10.0/75-15.3 AS ET80.

What is the maximum discharge height of the Weidemann 1350 CC yard loader?

The Weidemann 1350 CC has a maximum discharge height of 2.2 meters.

How much is a Weidemann 1350 CC Yard loader (2011u20132015) worth?

The residual value of the Weidemann 1350 CC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
