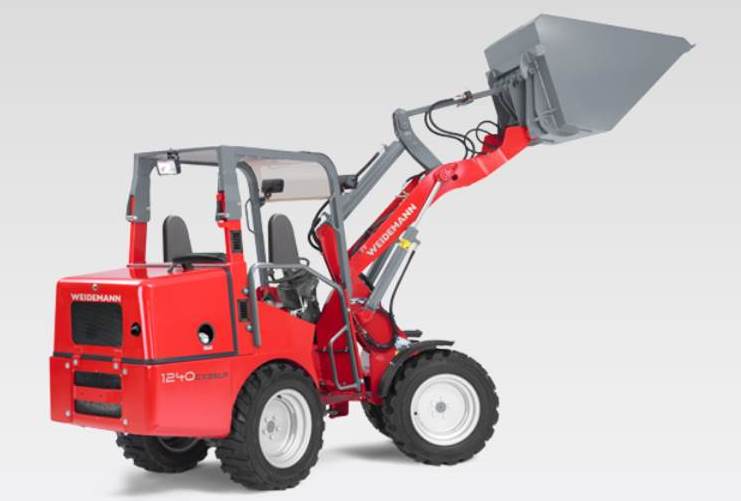

1240 CX LP Weidemann 1240 CX LP Specifications & Technical Data (2004—2016)

Weight: 1.91t – Standard tyres: 27x8.50 15 EM ET30 – Steering mode: KL – Max. discharge height: 1.404m – Turning radius outside: 2.607m – Transport length: 4.142m

1240 CX LP

Years of manufacture: 2004—2016

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 1240 CX LP Weidemann

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.91 t

Standard tyres: 27x8.50 15 EM ET30

Steering mode: KL

Max. discharge height: 1.404 m

Turning radius outside: 2.607 m

Transport length: 4.142 m

Transport width: 0.97 m

Transport height: 1.891 m

Engine manuf.: Perkins

Engine type: 403D-15

Engine power: 24.4 kW

Displacement: 1.496 l

Revolutions at max torque: 2800 rpm

More technical details, like: operating weight, tipping load, wheel base, travel speed, max. height at the shovel pivot point, overcharging height, turning radius inside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, tyre - size, service brake - type, service brake - location, wheelbase, length - shovel on ground, height - over cab, ground clearance, width - over tyres, shovel - type, shovel - width, full lift dump height, full lift reach, loader - arm type, loader - geometry, dump angle - at dump, dump angle - maximum, height - pivot pin, full lift dump height - maximum, height - maximum, dig depth, turning radius - over shovel, fuel tank, heaped capacity, straight tipping load, full turn tipping load, operating weight are available in the full technical specs.

Special equipment

Cabin: No
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Weidemann 1240 CX LP FAQ

When was the Weidemann 1240 CX LP manufactured?

The Weidemann 1240 CX LP was manufactured from 2004 to 2016.

What is the weight of the Weidemann 1240 CX LP?

The Weidemann 1240 CX LP has a weight of 1.91 tonnes.

What are the physical dimensions of the Weidemann 1240 CX LP yard loader?

The Weidemann 1240 CX LP has a transport length of 4.14 meters, a transport width of 0.97 meters, and a transport height of 1.89 meters.

What are the maneuverability specifications of the Weidemann 1240 CX LP?

The Weidemann 1240 CX LP features articulated-frame steering and has an outside turning radius of 2.607 meters.

What are the standard tyre specifications for the Weidemann 1240 CX LP?

The Weidemann 1240 CX LP is equipped with standard tyres sized 27x8.50 15 EM ET30.

What is the maximum discharge height of the Weidemann 1240 CX LP?

The Weidemann 1240 CX LP has a maximum discharge height of 1.4 meters.

How much is a Weidemann 1240 CX LP Yard loader (2004u20132016) worth?

The residual value of the Weidemann 1240 CX LP depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
