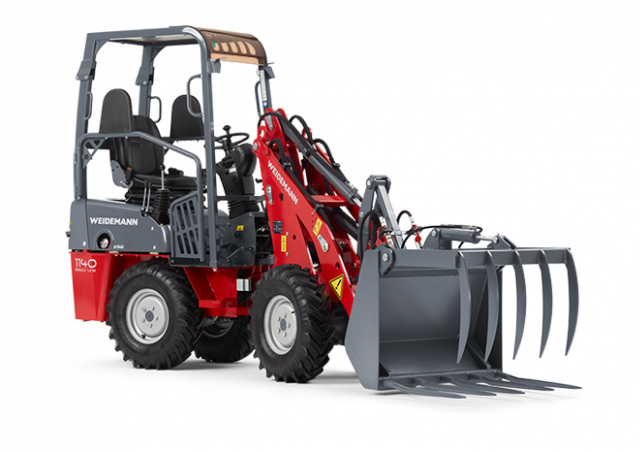

1140 Weidemann 1140 Specifications & Technical Data (2016—2019)
.png)
Technical specs - 1140 Weidemann
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.6 t
- Standard tyres
- 7.00-12 AS ET 40
- Tipping load
- 664 kg
- Wheel base
- 1.345 m
- Travel speed
- 12 km/h
- Steering mode
- KL
- Max. discharge height
- 1.8 m
- Turning radius outside
- 2.140 m
- Turning radius inside
- 0.6 m
- Transport length
- 3 m
- Transport width
- 0.85 m
- Transport height
- 2.227 m
- Engine manuf.
- Perkins
- Engine type
- 403D-11
- Engine power
- 17.9 kW
- Displacement
- 1.13 l
- Revolutions at max torque
- 2800 rpm
- No. of cylinders
- 3
More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
Special equipment
- Cabin
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
Yes
