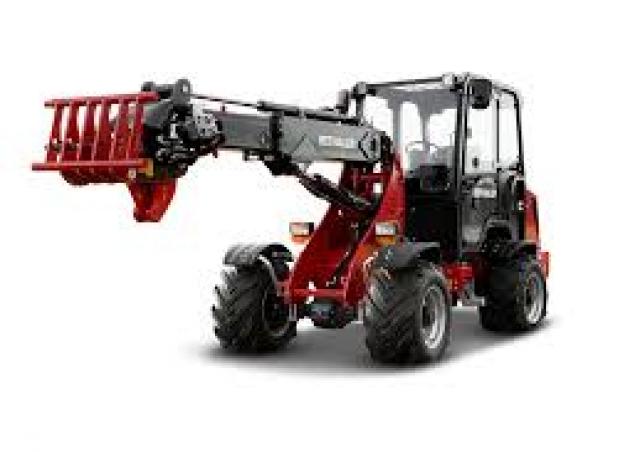

3448 H Thaler 3448 H Specifications & Technical Data (2020—2026)

Weight: 2.49t – operating weight: 2.73t – Standard tyres: 10.0/75-15.3 AS – Tipping load: 1700kg – Wheel base: 1.95m – Travel speed: 20km/h

3448 H

Years of manufacture: 2020—2026

Valuate & Sell
Spare parts
Transport
News

Technical specs - 3448 H Thaler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.49 t

operating weight: 2.73 t

Standard tyres: 10.0/75-15.3 AS

Tipping load: 1700 kg

Wheel base: 1.95 m

Travel speed: 20 km/h

Steering mode: KL

max. height at the shovel pivot point: 3.33 m

Overcharging height: 3.11 m

Max. discharge height: 2.59 m

Turning radius outside: 2.382 m

Turning radius inside: 1.21 m

Transport length: 4.225 m

Transport width: 1.16 m

Transport height: 2.27 m

Engine manuf.: Yanmar

Engine type: k.A.

Engine power: 35.4 kW

Displacement: 2.22 l

Revolutions at max torque: 3000 rpm

No. of cylinders: 4

Emission level: V

More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Thaler 3448 H FAQ

When was the Thaler 3448 H manufactured?

The Thaler 3448 H was first produced in 2020.

What are the weight specifications for the Thaler 3448 H?

The Thaler 3448 H has a standard weight of 2.49 tonnes and an operating weight of 2.73 tonnes.

What are the physical dimensions of the Thaler 3448 H yard loader?

The Thaler 3448 H has a transport length of 4.23 meters, a transport width of 1.16 meters, and a transport height of 2.27 meters.

What is the travel speed of the Thaler 3448 H yard loader?

The Thaler 3448 H has a travel speed of 20 km/h.

What are the maneuverability specifications of the Thaler 3448 H yard loader?

The Thaler 3448 H features articulated-frame steering with an outside turning radius of 2.382 meters and an inside turning radius of 1.21 meters.

What are the standard tyre specifications for the Thaler 3448 H?

The Thaler 3448 H is equipped with standard tyres sized 10.0/75-15.3 AS.

What are the chassis specifications of the Thaler 3448 H?

The Thaler 3448 H has a wheel base of 1.95 meters.

What is the mass capacity of the Thaler 3448 H?

The Thaler 3448 H has a tipping load capacity of 1700 kilograms.

What are the working height and reach specifications of the Thaler 3448 H yard loader?

The Thaler 3448 H has an overcharging height of 3.11 meters, a maximum discharge height of 2.59 meters, and a maximum height at the shovel pivot point of 3.33 meters.
