3348 S-5A Thaler 3348 S-5A Specifications & Technical Data (2019—2020)

Weight: 2.55t – Standard tyres: 400/50-15 AS – Tipping load: 1800kg – Wheel base: 1.95m – Travel speed: 20km/h – Steering mode: KL/A

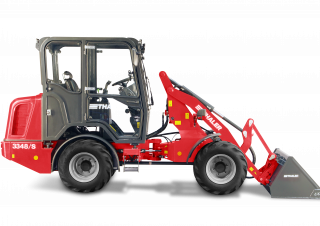

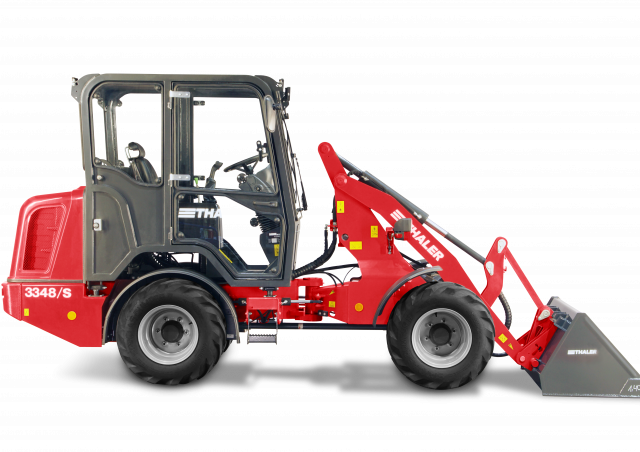

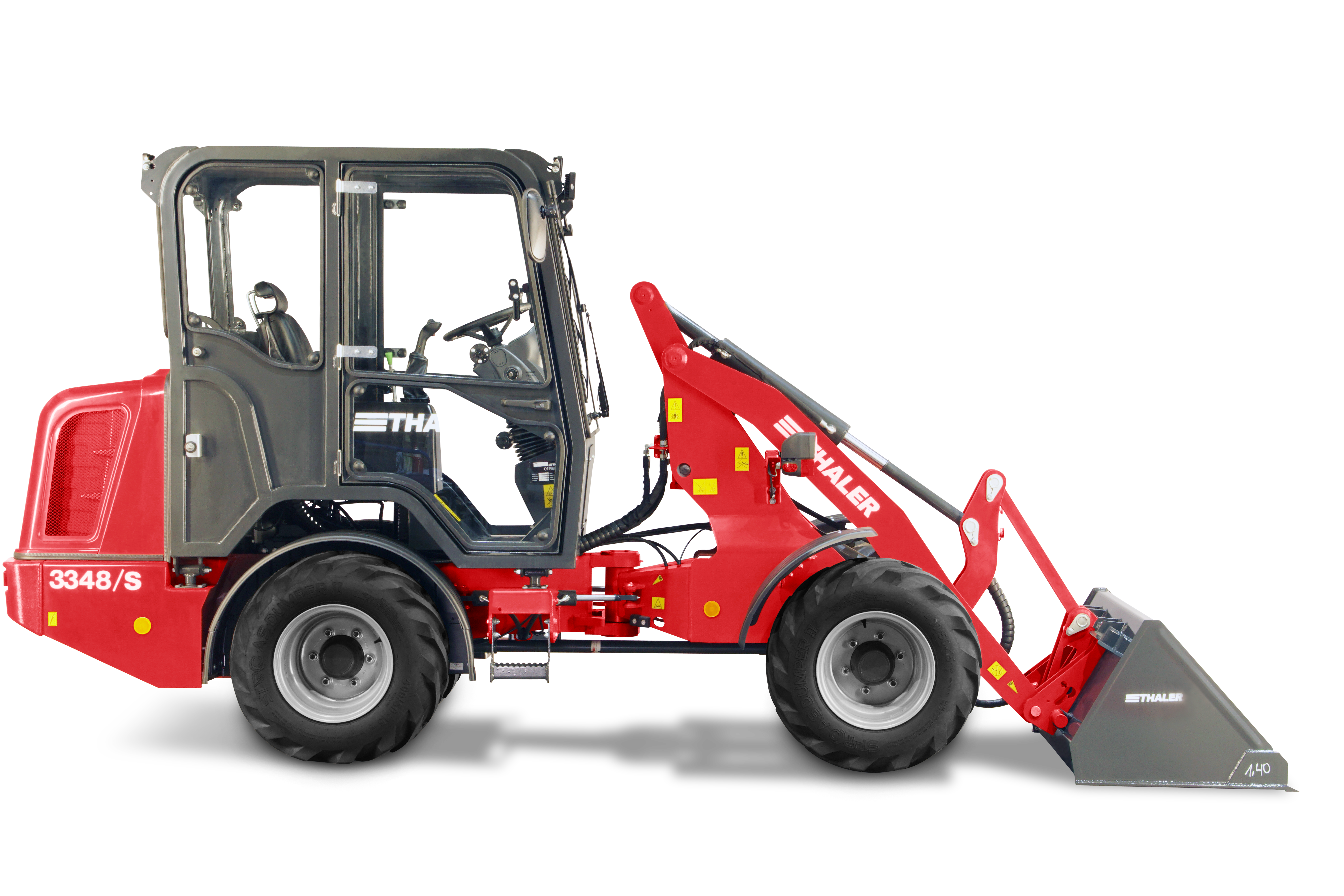

Yard loader Thaler 3348 S-5A

Technical specs - 3348 S-5A Thaler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.55 t
Standard tyres
400/50-15 AS
Tipping load
1800 kg
Wheel base
1.95 m
Travel speed
20 km/h
Steering mode
KL/A
max. height at the shovel pivot point
3.13 m
Max. discharge height
2.39 m
Turning radius outside
2.42 m
Turning radius inside
0.76 m
Transport length
3.9 m
Transport width
1.66 m
Transport height
2.26 m
Engine manuf.
Yanmar
Engine type
k.A.
Engine power
35.4 kW
Displacement
2.22 l
Revolutions at max torque
3000 rpm
No. of cylinders
4
Emission level
IIIA

More technical details, like: operating weight, overcharging height, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Thaler 3348 S-5A FAQ

When was the Thaler 3348 S-5A manufactured?

The Thaler 3348 S-5A was manufactured from 2019 to 2020.

What is the weight of the Thaler 3348 S-5A?

The Thaler 3348 S-5A has a weight of 2.55 tonnes.

What are the transport dimensions of the Thaler 3348 S-5A?

The Thaler 3348 S-5A has a transport length of 3.9 meters, a transport width of 1.66 meters, and a transport height of 2.26 meters.

What is the travel speed of the Thaler 3348 S-5A?

The Thaler 3348 S-5A has a travel speed of 20 km/h.

What are the maneuverability specifications of the Thaler 3348 S-5A?

The Thaler 3348 S-5A features all-wheel, articulated-frame steering with an outside turning radius of 2.42 meters and an inside turning radius of 0.76 meters.

What are the tyre specifications for the Thaler 3348 S-5A?

The Thaler 3348 S-5A is equipped with standard tyres sized 400/50-15 AS.

What is the wheel base of the Thaler 3348 S-5A?

The Thaler 3348 S-5A has a wheel base of 1.95 meters.

What is the tipping load capacity of the Thaler 3348 S-5A?

The Thaler 3348 S-5A has a tipping load capacity of 1800 kilograms.

What are the maximum discharge height and the maximum height at the shovel pivot point for the Thaler 3348 S-5A?

The Thaler 3348 S-5A has a maximum discharge height of 2.39 meters and a maximum height at the shovel pivot point of 3.13 meters.
