2838T Thaler 2838T Specifications & Technical Data (2020—2026)

Weight: 2.54t – operating weight: 2.8t – Standard tyres: 400/50-15 AS – Tipping load: 1320kg – Wheel base: 1.68m – Travel speed: 18km/h

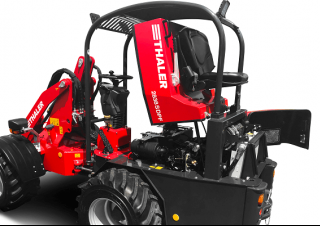

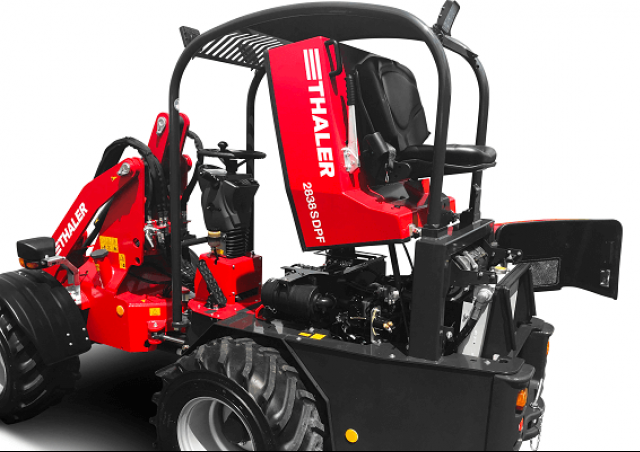

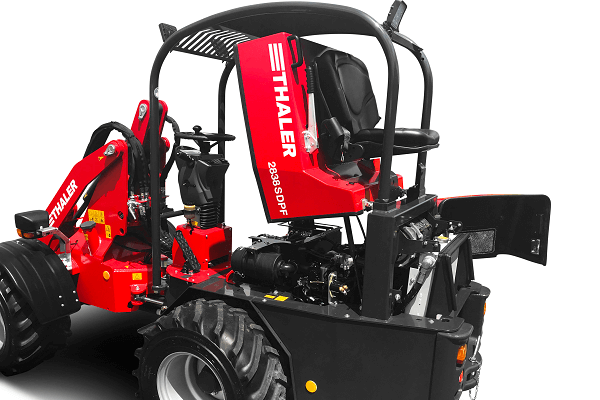

Yard loader Thaler 2838T

Technical specs - 2838T Thaler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.54 t
operating weight
2.8 t
Standard tyres
400/50-15 AS
Tipping load
1320 kg
Wheel base
1.68 m
Travel speed
18 km/h
Steering mode
KL
max. height at the shovel pivot point
3.292 m
Overcharging height
3.142 m
Max. discharge height
2.48 m
Turning radius outside
2.53 m
Turning radius inside
1.1 m
Transport length
3.765 m
Transport width
1.38 m
Transport height
2.24 m
Engine manuf.
Yanmar
Engine type
k.A.
Engine power
28.2 kW
Displacement
1.64 l
Revolutions at max torque
3000 rpm
No. of cylinders
3
Emission level
V

More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
No
telescopic
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Thaler 2838T FAQ

When did production of the Thaler 2838T start?

The Thaler 2838T was first produced in 2020.

What are the weight specifications for the Thaler 2838T?

The Thaler 2838T has a standard weight of 2.54 tonnes and an operating weight of 2.8 tonnes.

What are the physical dimensions of the Thaler 2838T yard loader?

The Thaler 2838T has a transport length of 3.77 meters, a transport width of 1.38 meters, and a transport height of 2.24 meters.

What is the travel speed of the Thaler 2838T yard loader?

The Thaler 2838T yard loader has a travel speed of 18 km/h.

What are the maneuverability specifications of the Thaler 2838T yard loader?

The Thaler 2838T features articulated-frame steering with an outside turning radius of 2.53 meters and an inside turning radius of 1.1 meters.

What are the standard tyre specifications for the Thaler 2838T?

The Thaler 2838T is equipped with standard tyres sized 400/50-15 AS.

What is the wheelbase of the Thaler 2838T yard loader?

The Thaler 2838T has a wheelbase of 1.68 meters.

What is the mass capacity of the Thaler 2838T?

The Thaler 2838T has a tipping load of 1320 kilograms.

What are the working height and reach specifications of the Thaler 2838T yard loader?

The Thaler 2838T has an overcharging height of 3.14 meters, a maximum discharge height of 2.48 meters, and a maximum height at the shovel pivot point of 3.29 meters.

How much is a Thaler 2838T Yard loader (2020u20132025) worth?

The residual value of the Thaler 2838T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
