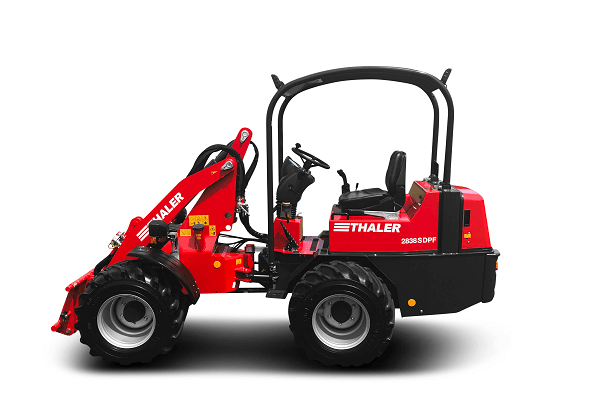

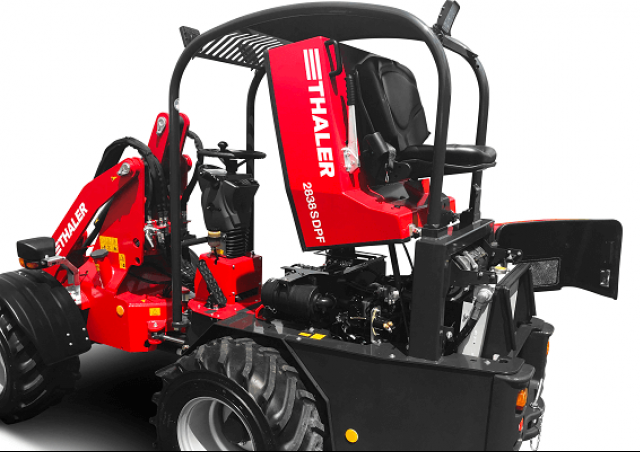

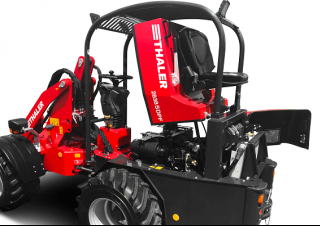

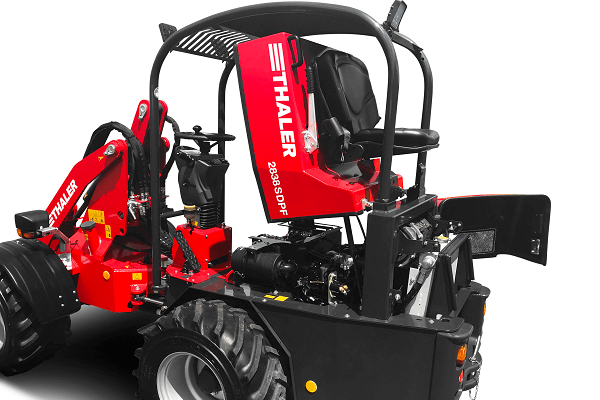

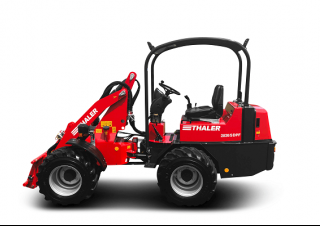

2838 S Thaler 2838 S Specifications & Technical Data (2020—2026)
.png)
.png)
Technical specs - 2838 S Thaler
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2 t
- operating weight
- 2.12 t
- Standard tyres
- 10.0/75-15.3 AS
- Tipping load
- 1250 kg
- Wheel base
- 1.67 m
- Travel speed
- 18 km/h
- Steering mode
- KL
- max. height at the shovel pivot point
- 3.13 m
- Overcharging height
- 2.93 m
- Max. discharge height
- 2.39 m
- Turning radius outside
- 2.4 m
- Turning radius inside
- 1.23 m
- Transport length
- 3.52 m
- Transport width
- 1.16 m
- Transport height
- 2.24 m
- Engine manuf.
- Yanmar
- Engine type
- k.A.
- Engine power
- 28.2 kW
- Displacement
- 1.64 l
- Revolutions at max torque
- 3000 rpm
- No. of cylinders
- 3
- Emission level
- V
More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
Download datasheets (PDF)
Thaler 2838 S FAQ
What are the weight specifications for the Thaler 2838 S?
What are the physical dimensions of the Thaler 2838 S yard loader?
What is the travel speed of the Thaler 2838 S?
What are the maneuverability specifications of the Thaler 2838 S yard loader?
What are the standard tyre specifications for the Thaler 2838 S?
What is the wheel base of the Thaler 2838 S?
What is the tipping load capacity of the Thaler 2838 S?
What are the working height and reach specifications of the Thaler 2838 S?
